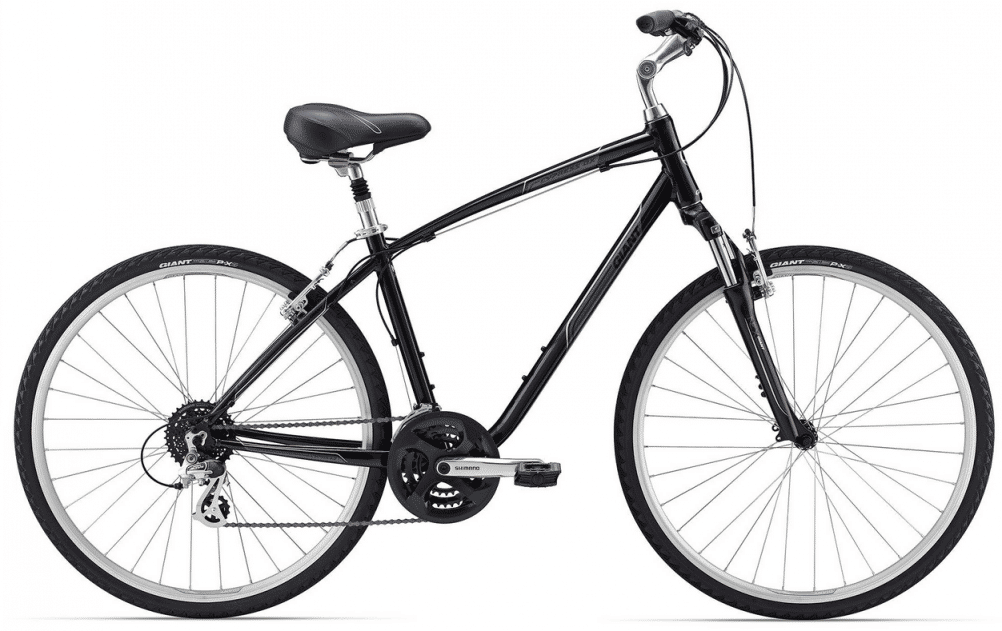

2015 Giant Cypress DX geometry
Full frame geometry for the 2015 Giant Cypress DX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/14 | 644 | 361 | 74 | 69.5 | 180 | 546 | 531 | 68 | 627 | 455 | 1072 | 45 | 83 |
| M/18 | 663 | 387 | 73.5 | 69.5 | 201 | 584 | 584 | 68 | 660 | 455 | 1107 | 45 | 83 |
| S/16 | 663 | 367 | 73.5 | 69.5 | 201 | 564 | 546 | 68 | 640 | 455 | 1087 | 45 | 83 |
All measurements in millimetres unless marked (°) for angles.
