2017 Giant Contend MKI geometry

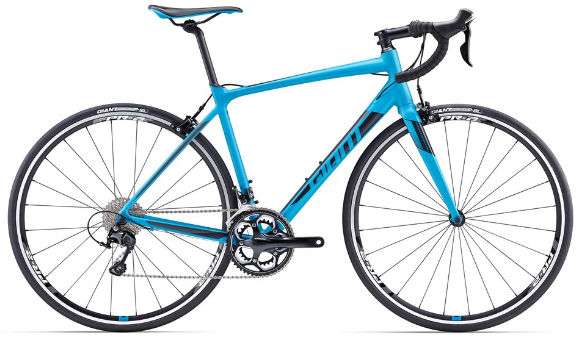

Name: 2017 Giant Contend MKI
Brand: Giant

Full frame geometry for the 2017 Giant Contend MKI, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
XS	523	365	74.5	71	125	510	410	687	70	573	410	973	45	70
S	546	373	74	72	145	530	445	717	70	579	410	979	45	64
M	567	377	73.5	72.5	165	545	480	745	70	585	410	985	45	60
ML	586	381	73	72.5	190	560	515	779	65	596	410	997	45	60
L	605	390	73	72.5	210	575	535	797	65	611	410	1012	45	60
XL	624	398	72.5	72.5	230	595	565	822	65	626	410	1027	45	60

All measurements in millimetres unless marked (°) for angles.
