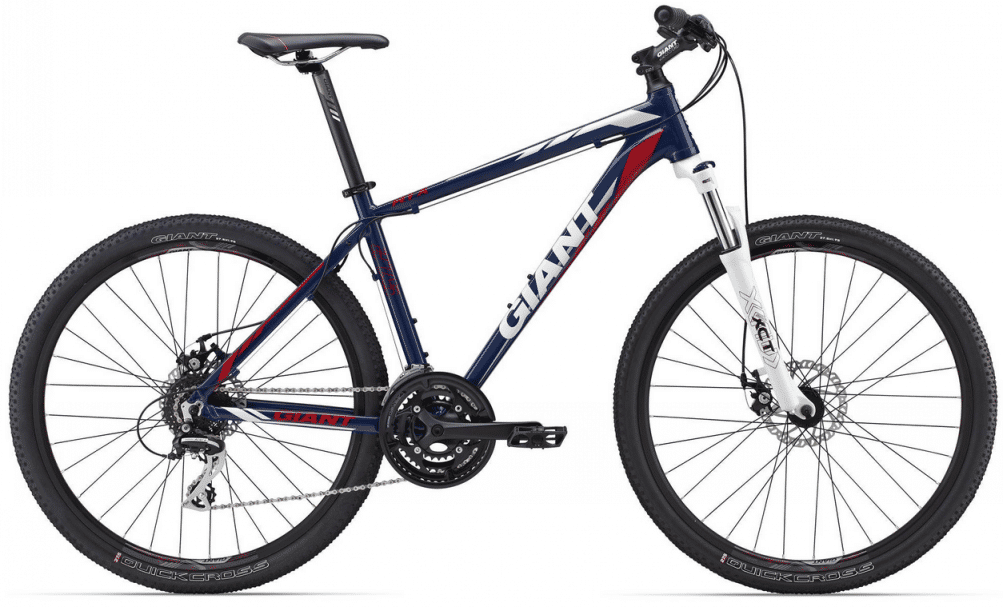

2015 Giant ATX MKI geometry
Full frame geometry for the 2015 Giant ATX MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XXS/12.5 | 598 | 359 | 74 | 70 | 94 | 531 | 681 | 48 | 434 | 1034 |
| XS/14.5 | 614 | 369 | 73.5 | 70.5 | 109 | 551 | 709 | 48 | 434 | 1049 |
| S/16 | 619 | 380 | 73 | 70.5 | 114 | 569 | 734 | 48 | 434 | 1059 |
| M/18 | 631 | 396 | 73 | 70.5 | 127 | 589 | 772 | 48 | 434 | 1080 |
| L/20 | 636 | 410 | 72.5 | 70.5 | 132 | 610 | 808 | 48 | 434 | 1092 |
| XL/22 | 643 | 427 | 72.5 | 70.5 | 140 | 630 | 823 | 48 | 434 | 1113 |
All measurements in millimetres unless marked (°) for angles.
