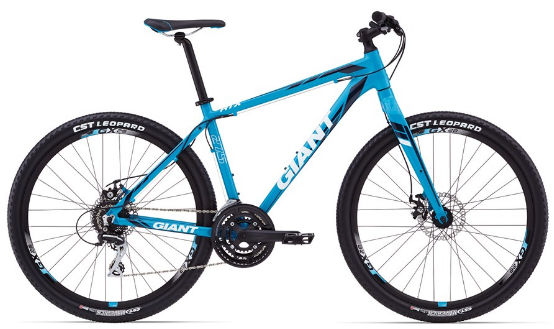

2017 Giant ATX Lite geometry
Full frame geometry for the 2017 Giant ATX Lite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XXS | 560 | 370 | 74 | 70 | 95 | 530 | 674 | 435 | 1033 |
| XS | 581 | 383 | 73.5 | 70.5 | 115 | 555 | 687 | 435 | 1049 |
| S | 586 | 391 | 73 | 70.5 | 121 | 570 | 734 | 435 | 1058 |
| M | 592 | 409 | 73 | 70.5 | 127 | 590 | 743 | 435 | 1079 |
| L | 598 | 422 | 72.5 | 70.5 | 133 | 610 | 781 | 435 | 1094 |
| XL | 604 | 440 | 72.5 | 70.5 | 140 | 630 | 811 | 435 | 1113 |
All measurements in millimetres unless marked (°) for angles.
