2018 Giant · MH

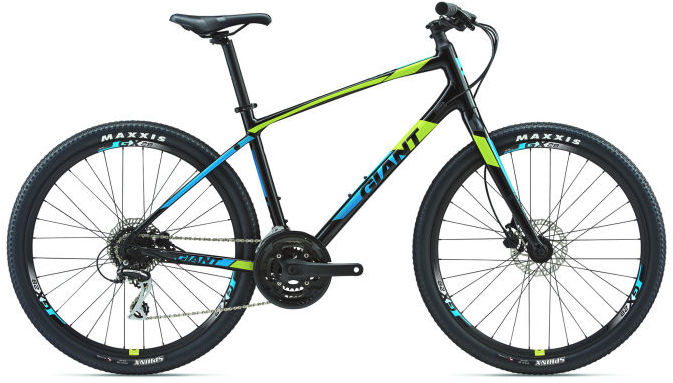

2018 Giant ARX geometry
Full frame geometry for the 2018 Giant ARX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 549 | 402 | 73.5 | 68 | 125 | 565 | 415 | 706 | 50 | 491 | 435 | 1081 | 42 | 96 |
| S | 567 | 407 | 73.5 | 68 | 145 | 575 | 420 | 714 | 50 | 503 | 435 | 1093 | 42 | 96 |
| M | 595 | 403 | 73 | 68 | 175 | 585 | 455 | 745 | 50 | 511 | 435 | 1101 | 42 | 96 |
| L | 628 | 403 | 73 | 68 | 210 | 595 | 505 | 788 | 50 | 524 | 435 | 1114 | 42 | 96 |
| XL | 651 | 406 | 73 | 68 | 235 | 605 | 535 | 814 | 50 | 536 | 435 | 1126 | 42 | 96 |
All measurements in millimetres unless marked (°) for angles.
