2017 Giant · G

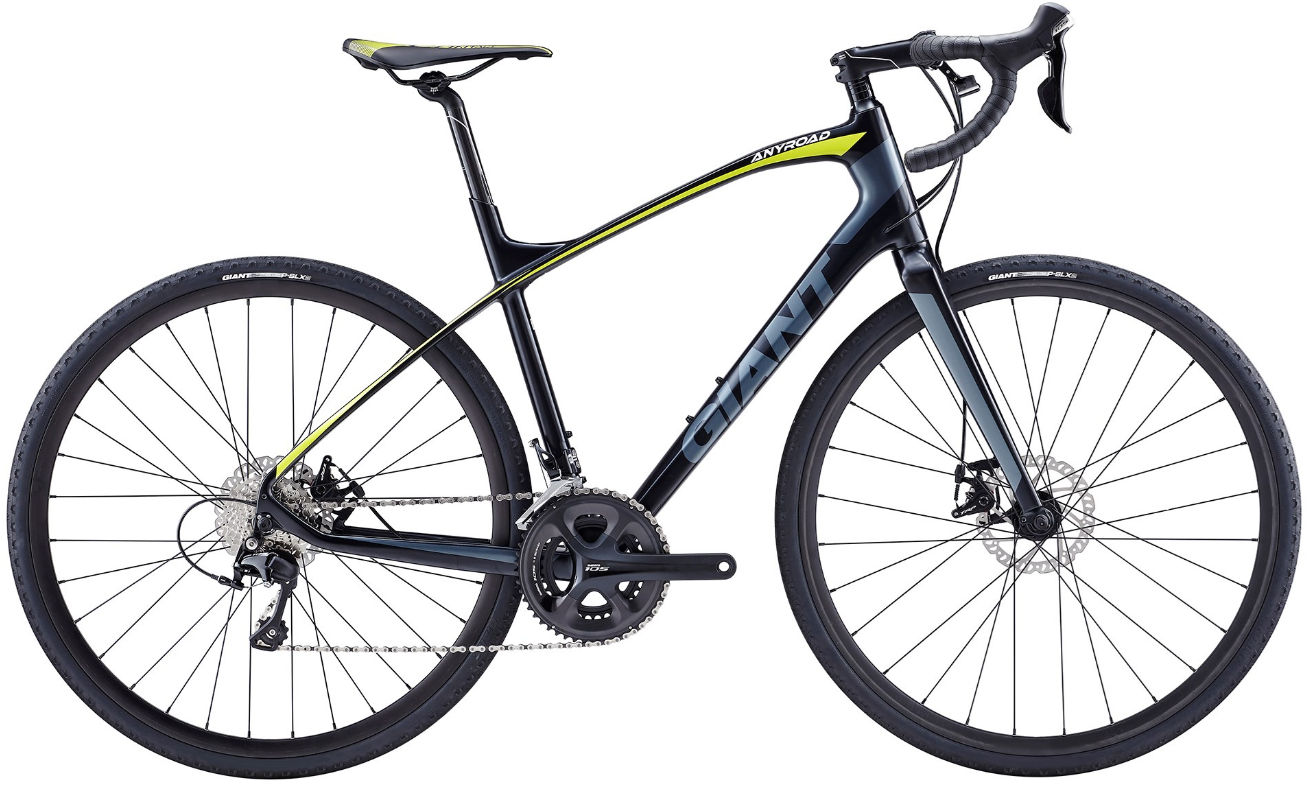

2017 Giant Anyroad CoMax geometry
Full frame geometry for the 2017 Giant Anyroad CoMax, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 548 | 363 | 74.5 | 70.5 | 140 | 515 | 690 | 430 | 1015 |
| S | 568 | 362 | 74 | 71 | 160 | 525 | 705 | 430 | 1016 |
| M | 596 | 363 | 73.5 | 72 | 185 | 540 | 731 | 430 | 1016 |
| L | 625 | 379 | 73 | 72 | 215 | 570 | 752 | 430 | 1041 |
| XL | 644 | 383 | 73 | 72 | 235 | 580 | 774 | 430 | 1051 |
All measurements in millimetres unless marked (°) for angles.
