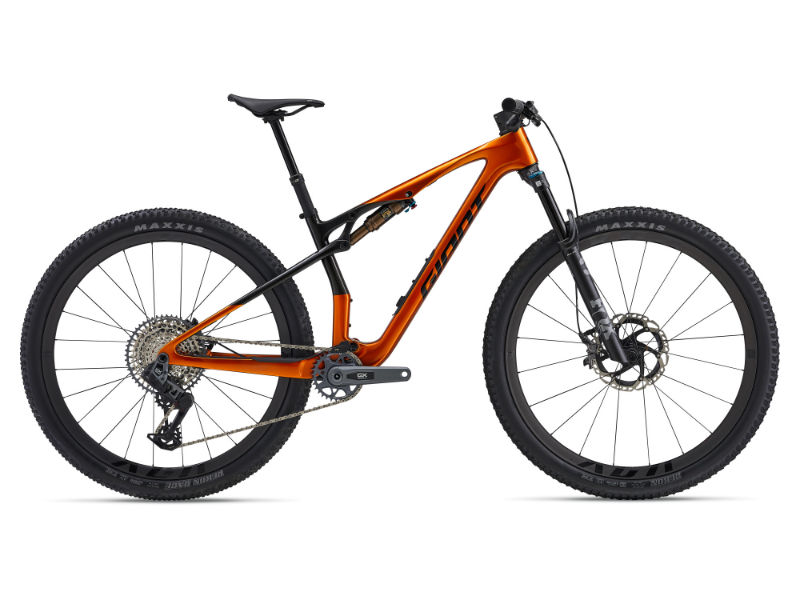

2026 Giant Anthem X Advanced SL geometry
Full frame geometry for the 2026 Giant Anthem X Advanced SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 606 | 415 | 75 | 66 | 90 | 577 | 400 | 774 | 48 | 437 | 1145 | 44 | 119.5 |
| M | 611 | 440 | 75.1 | 66.1 | 95 | 603 | 420 | 770 | 48 | 437 | 1172 | 44 | 119.3 |
| L | 620 | 460 | 75.1 | 66.1 | 105 | 625 | 465 | 762 | 48 | 437 | 1196 | 44 | 119.2 |
| XL | 629 | 485 | 75.1 | 66.1 | 115 | 653 | 495 | 757 | 48 | 437 | 1225 | 44 | 119 |
All measurements in millimetres unless marked (°) for angles.
