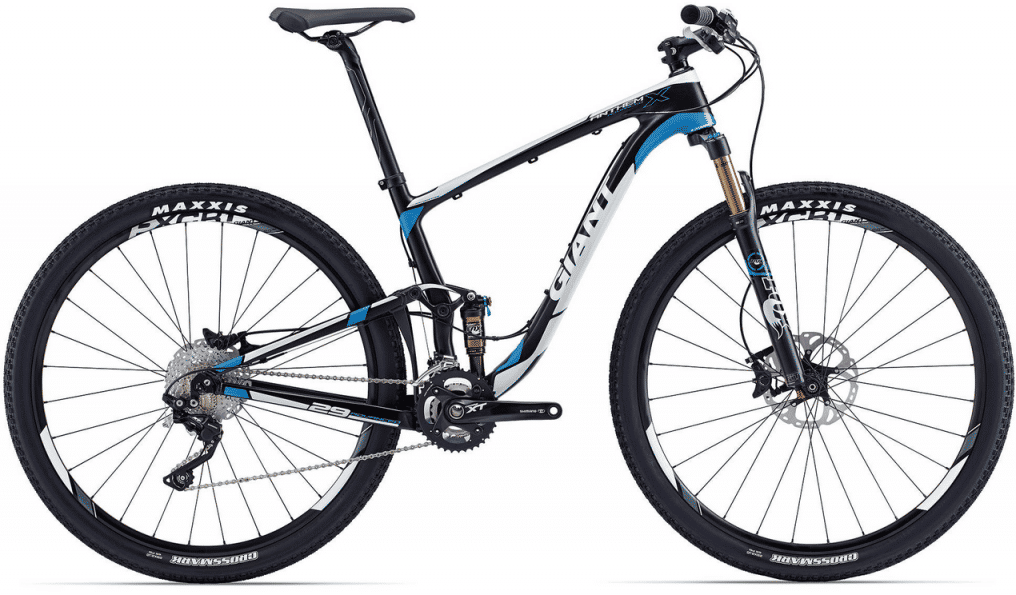

2015 Giant Anthem X Advanced 29 MKI geometry
Full frame geometry for the 2015 Giant Anthem X Advanced 29 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| L/20 | 617 | 426 | 73 | 71 | 104 | 615 | 805 | 39 | 462 | 1125 |
| M/18 | 617 | 405 | 73 | 71 | 104 | 594 | 770 | 39 | 462 | 1105 |
| S/16 | 617 | 385 | 73 | 71 | 104 | 574 | 757 | 39 | 462 | 1085 |
| XS/14.5 | 617 | 382 | 74 | 71 | 104 | 559 | 719 | 39 | 462 | 1080 |
| XL/22 | 631 | 442 | 73 | 71 | 119 | 635 | 820 | 39 | 462 | 1146 |
All measurements in millimetres unless marked (°) for angles.
