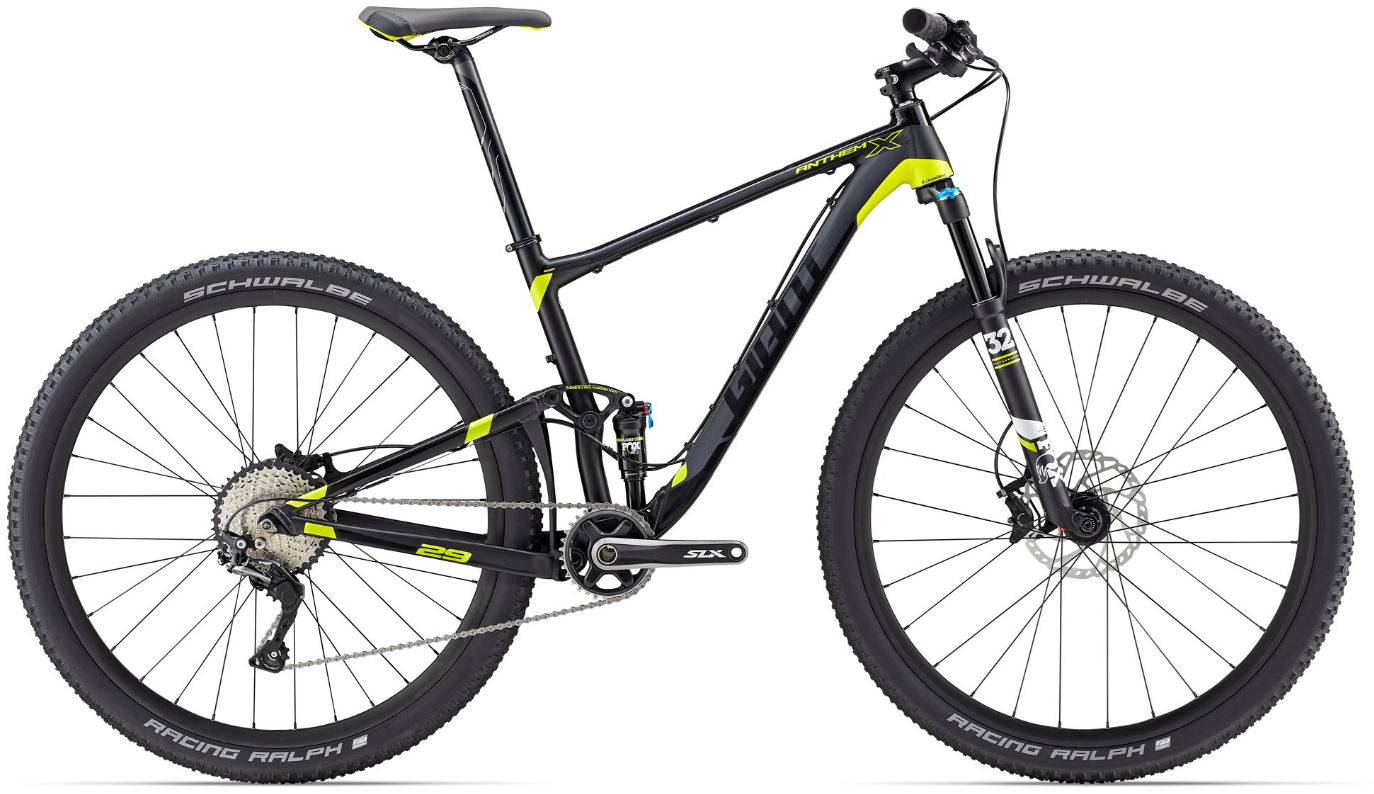

2017 Giant Anthem X 29 MKII geometry
Full frame geometry for the 2017 Giant Anthem X 29 MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 607 | 430 | 73 | 71.5 | 104 | 615 | 490 | 805 | 43 | 667 | 462 | 1126 | 45 | 77 |
| M | 607 | 410 | 73 | 71.5 | 104 | 594 | 440 | 770 | 43 | 674 | 462 | 1133 | 45 | 77 |
| S | 607 | 390 | 73 | 71.5 | 104 | 574 | 390 | 757 | 43 | 627 | 462 | 1086 | 45 | 77 |
| XL | 621 | 445 | 73 | 71.5 | 119 | 635 | 520 | 820 | 43 | 687 | 462 | 1146 | 45 | 77 |
All measurements in millimetres unless marked (°) for angles.
