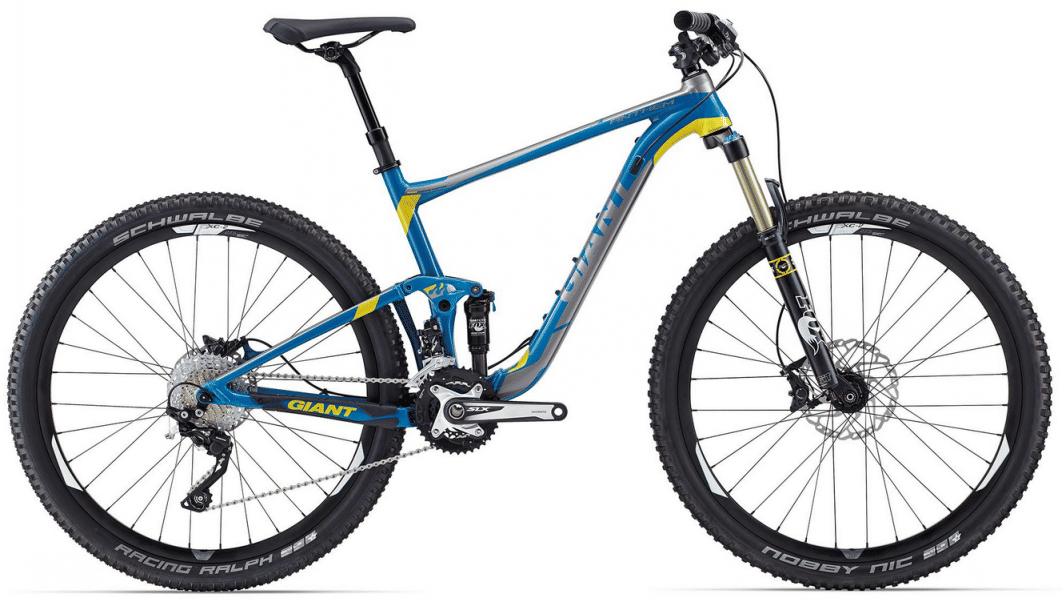

2015 Giant Anthem SX 27.5 geometry
Full frame geometry for the 2015 Giant Anthem SX 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S/16 | 580 | 385 | 72 | 68.5 | 94 | 574 | 721 | 17 | 432 | 1087 |
| XS/14.5 | 580 | 379 | 73 | 68.5 | 94 | 556 | 716 | 17 | 432 | 1077 |
| L/20 | 585 | 425 | 72 | 68.5 | 99 | 615 | 787 | 17 | 432 | 1125 |
| M/18 | 585 | 404 | 72 | 68.5 | 99 | 594 | 754 | 17 | 432 | 1107 |
| XL/22 | 594 | 442 | 72 | 68.5 | 109 | 635 | 810 | 17 | 432 | 1148 |
All measurements in millimetres unless marked (°) for angles.
