2015 Giant · MD

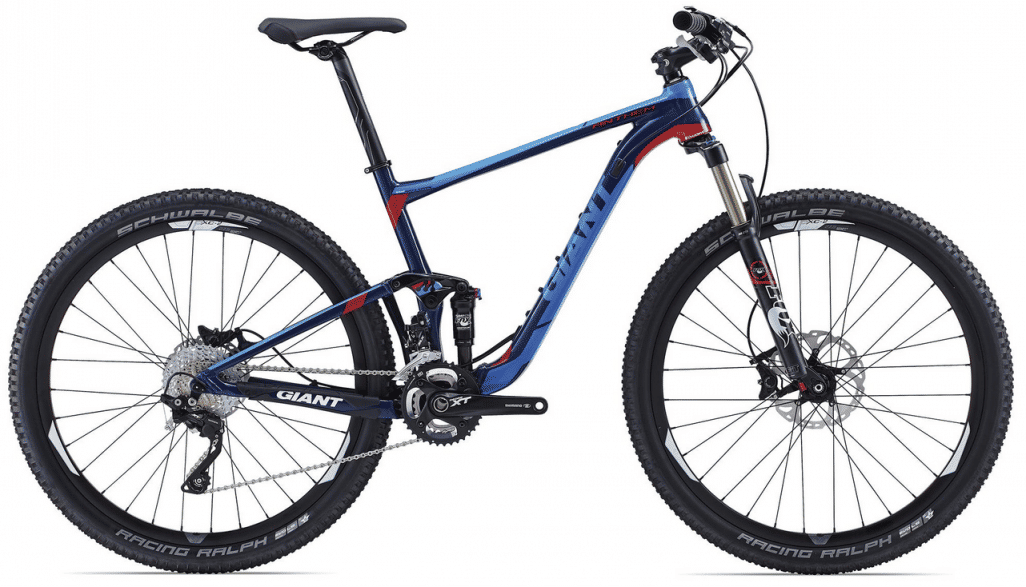

2015 Giant Anthem MKI geometry
Full frame geometry for the 2015 Giant Anthem MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| L/20 | 568 | 441 | 73 | 69.5 | 99 | 615 | 782 | 15 | 432 | 1120 |
| XL/22 | 577 | 458 | 73 | 69.5 | 109 | 635 | 805 | 15 | 432 | 1140 |
All measurements in millimetres unless marked (°) for angles.
