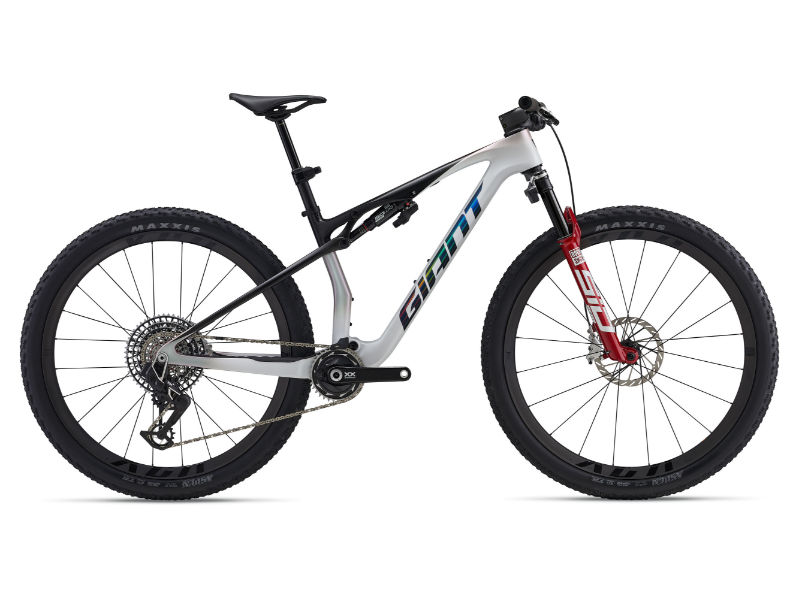

2026 Giant Anthem Advanced SL geometry
Full frame geometry for the 2026 Giant Anthem Advanced SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 602 | 420 | 75.5 | 66.5 | 90 | 576 | 400 | 769 | 51 | 437 | 1141 | 44 | 116 |
| M | 607 | 445 | 75.5 | 66.5 | 95 | 602 | 420 | 764 | 51 | 437 | 1168 | 44 | 115.9 |
| L | 616 | 465 | 75.5 | 66.5 | 105 | 624 | 465 | 758 | 52 | 437 | 1192 | 44 | 115.9 |
| XL | 626 | 490 | 75.5 | 66.5 | 115 | 651 | 495 | 751 | 52 | 437 | 1221 | 44 | 115.8 |
All measurements in millimetres unless marked (°) for angles.
