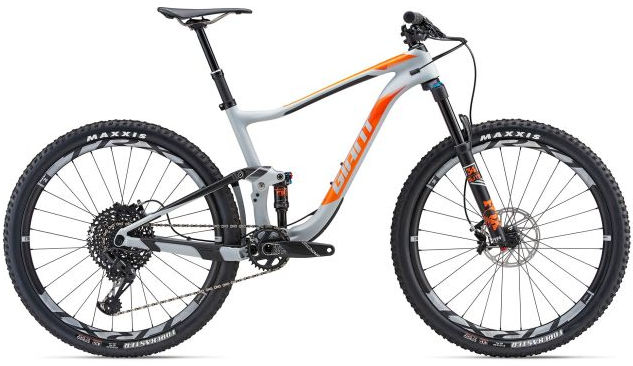

2017 Giant Anthem Advanced MKIV geometry
Full frame geometry for the 2017 Giant Anthem Advanced MKIV, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 574 | 411 | 72.9 | 67.4 | 95 | 585 | 390 | 714 | 21 | 428 | 1114 | 42 | 102 |
| M | 579 | 429 | 72.9 | 67.4 | 100 | 605 | 440 | 737 | 21 | 428 | 1134 | 42 | 102 |
| L | 588 | 446 | 72.9 | 67.4 | 110 | 625 | 490 | 774 | 21 | 428 | 1155 | 42 | 102 |
| XL | 597 | 463 | 72.9 | 67.4 | 120 | 645 | 535 | 806 | 21 | 428 | 1176 | 42 | 102 |
All measurements in millimetres unless marked (°) for angles.
