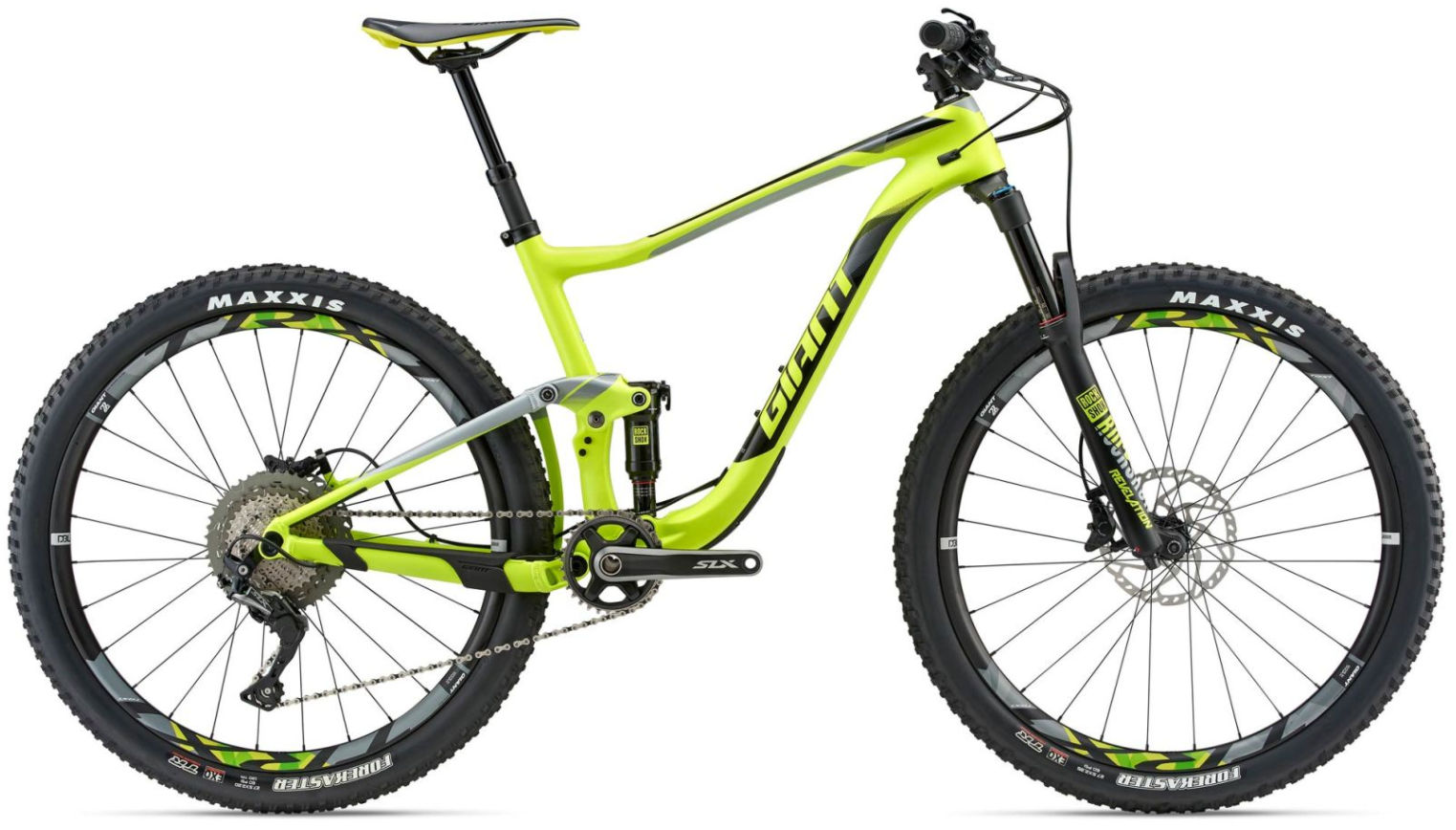

2017 Giant Anthem Advanced MKIII geometry
Full frame geometry for the 2017 Giant Anthem Advanced MKIII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 569 | 416 | 73.5 | 68 | 95 | 585 | 390 | 711 | 22 | 686 | 428 | 1113 | 42 | 101 |
| XS | 569 | 396 | 73.5 | 68 | 95 | 565 | 370 | 700 | 22 | 666 | 428 | 1093 | 42 | 101 |
| M | 574 | 435 | 73.5 | 68 | 100 | 605 | 440 | 735 | 22 | 706 | 428 | 1133 | 42 | 101 |
| L | 583 | 452 | 73.5 | 68 | 110 | 625 | 490 | 773 | 22 | 727 | 428 | 1154 | 42 | 101 |
| XL | 592 | 469 | 73.5 | 68 | 120 | 645 | 535 | 805 | 22 | 748 | 428 | 1175 | 42 | 101 |
All measurements in millimetres unless marked (°) for angles.
