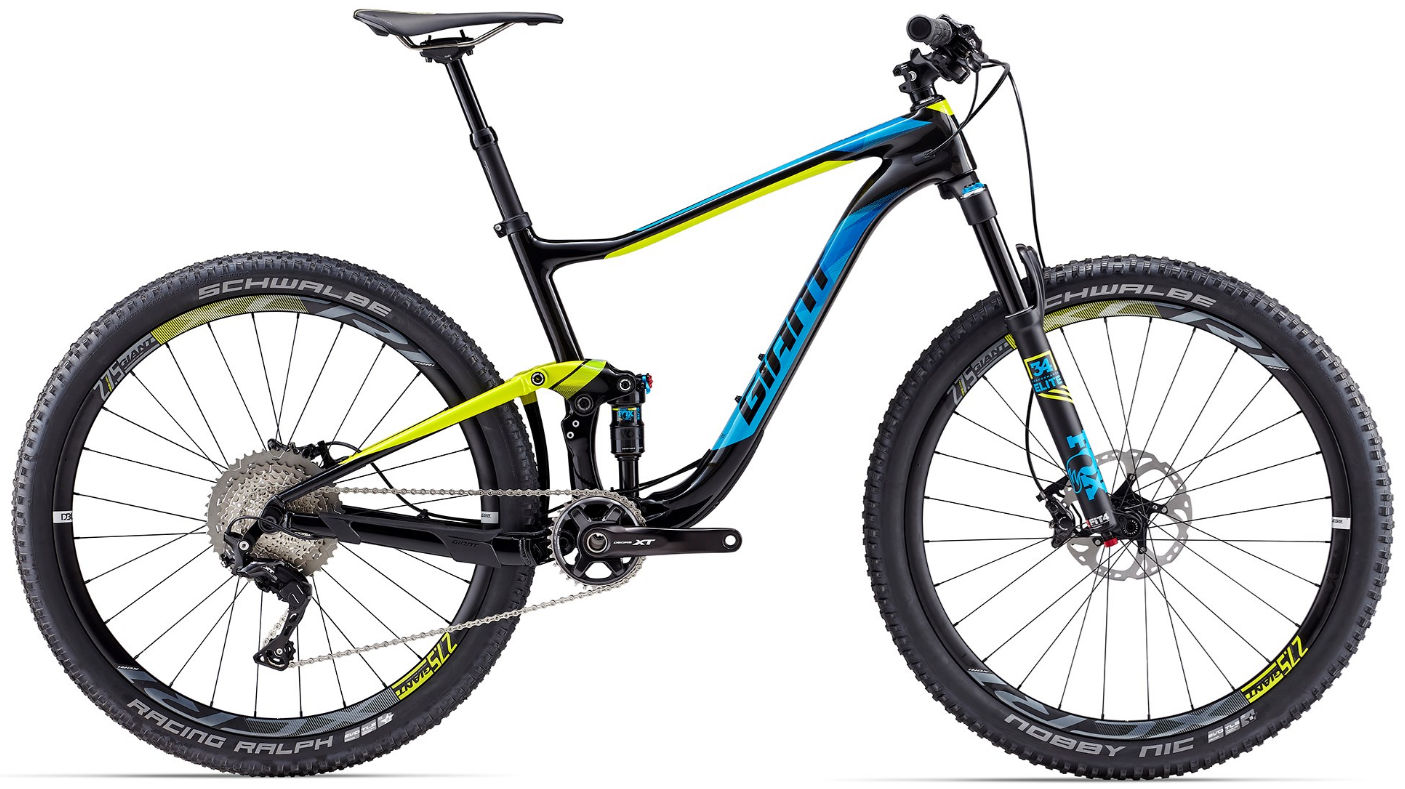

2016 Giant Anthem Advanced MKII geometry
Full frame geometry for the 2016 Giant Anthem Advanced MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 569 | 416 | 73.5 | 68 | 95 | 585 | 390 | 707 | 25 | 682 | 428 | 1109 | 42 | 98 |
| XS | 569 | 396 | 73.5 | 68 | 95 | 565 | 370 | 689 | 25 | 662 | 428 | 1089 | 42 | 98 |
| M | 574 | 435 | 73.5 | 68 | 100 | 605 | 440 | 731 | 25 | 702 | 428 | 1129 | 42 | 98 |
| L | 583 | 452 | 73.5 | 68 | 110 | 625 | 490 | 769 | 25 | 723 | 428 | 1150 | 42 | 98 |
| XL | 592 | 469 | 73.5 | 68 | 120 | 645 | 535 | 801 | 25 | 744 | 428 | 1171 | 42 | 98 |
All measurements in millimetres unless marked (°) for angles.
