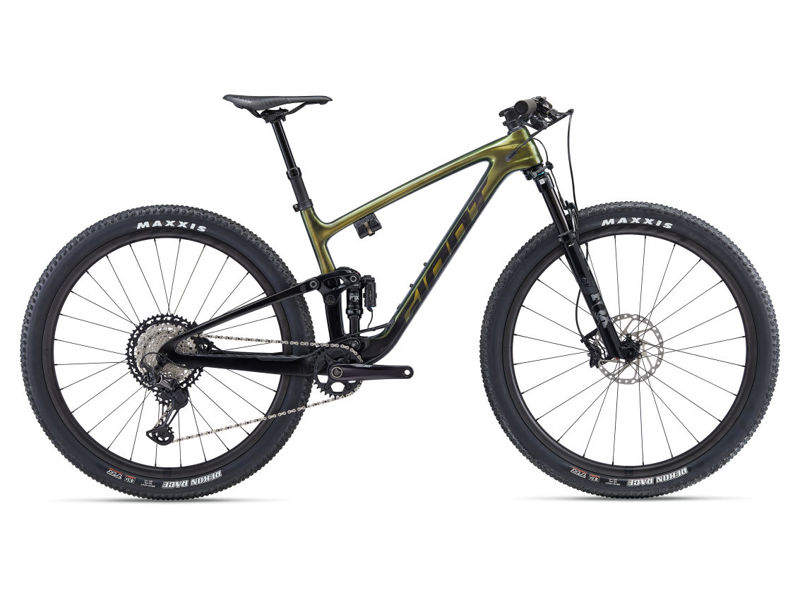

2023 Giant Anthem Advance Pro geometry
Full frame geometry for the 2023 Giant Anthem Advance Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 420 | 75.5 | 67.5 | 90 | 572 | 390 | 745 | 42 | 435 | 1127 | 44 | 109 |
| M | 593 | 450 | 75.5 | 67.5 | 95 | 604 | 420 | 750 | 42 | 435 | 1159 | 44 | 109 |
| L | 603 | 470 | 75.5 | 67.5 | 105 | 626 | 465 | 777 | 42 | 435 | 1183 | 44 | 109 |
| XL | 612 | 495 | 75.5 | 67.5 | 115 | 653 | 495 | 800 | 42 | 435 | 1212 | 44 | 109 |
All measurements in millimetres unless marked (°) for angles.
