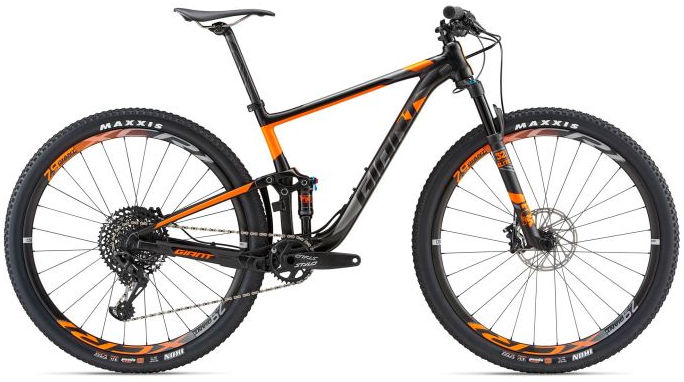

2018 Giant Anthem 29 geometry
Full frame geometry for the 2018 Giant Anthem 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 585 | 437 | 73.5 | 69 | 95 | 610 | 440 | 761 | 45 | 699 | 438 | 1133 | 51 | 89 |
| S | 585 | 417 | 73.5 | 69 | 95 | 590 | 390 | 740 | 45 | 679 | 438 | 1113 | 51 | 89 |
| L | 594 | 454 | 73.5 | 69 | 105 | 630 | 490 | 796 | 45 | 720 | 438 | 1154 | 51 | — |
| XL | 604 | 471 | 73.5 | 69 | 115 | 650 | 535 | 828 | 45 | 741 | 438 | 1175 | 51 | 0 |
All measurements in millimetres unless marked (°) for angles.
