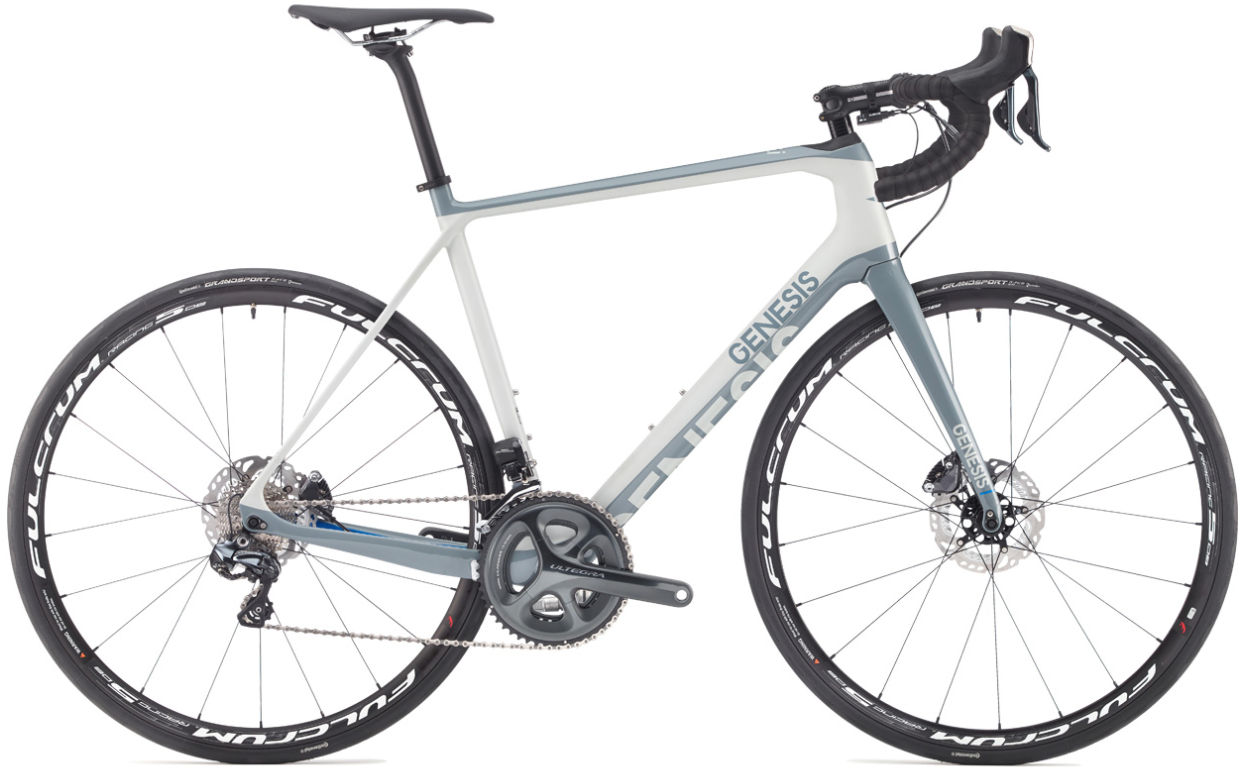

2017 Genesis Zero Disc geometry
Full frame geometry for the 2017 Genesis Zero Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 524 | 365 | 74 | 71.5 | 115 | 515 | 460 | 737 | 72 | 410 | 975 | 52 | 59 |
| S | 540 | 375 | 73.5 | 72 | 130 | 535 | 490 | 758 | 72 | 410 | 985 | 52 | 56 |
| M | 558 | 385 | 73.2 | 73 | 150 | 553 | 520 | 784 | 70 | 410 | 985 | 45 | 57 |
| L | 576 | 395 | 73 | 73.3 | 165 | 571 | 550 | 802 | 68 | 410 | 999 | 45 | 55 |
| XL | 595 | 405 | 72.5 | 73.3 | 185 | 592 | 580 | 825 | 68 | 410 | 1014 | 45 | 55 |
All measurements in millimetres unless marked (°) for angles.
