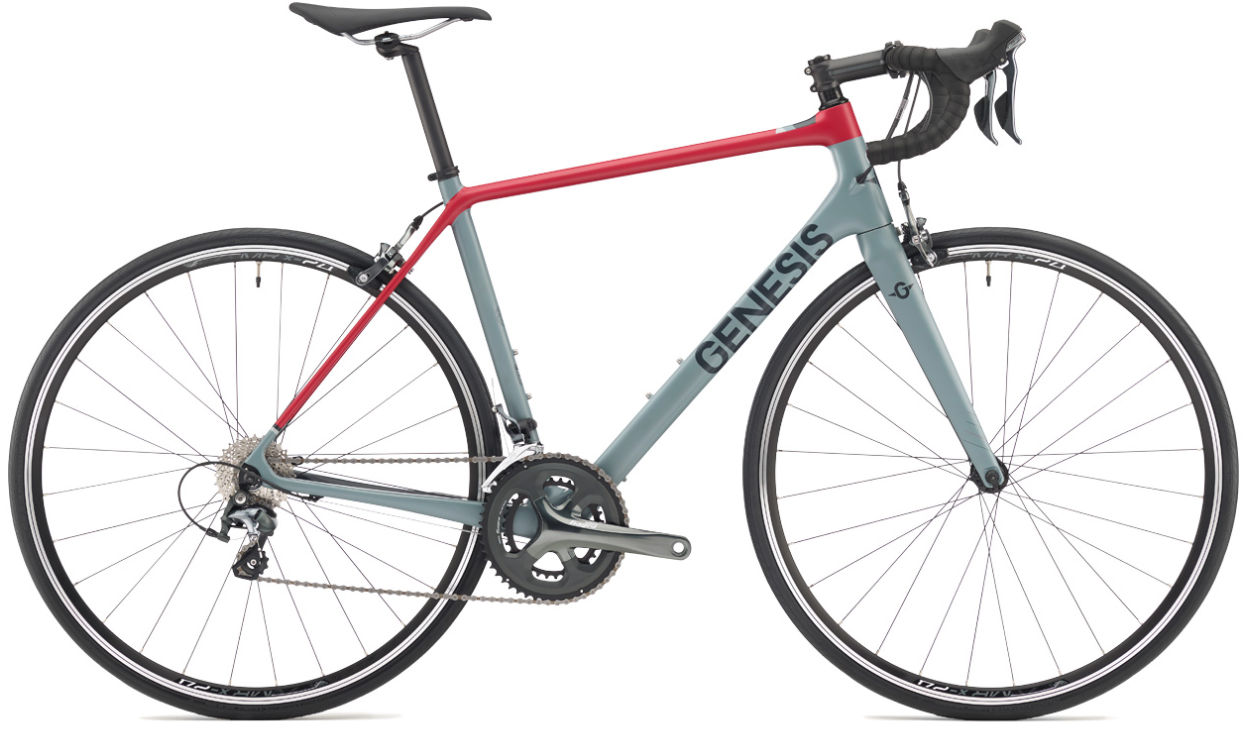

2018 Genesis Zeal geometry
Full frame geometry for the 2018 Genesis Zeal, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 540 | 375 | 74 | 71.5 | 140 | 530 | 475 | 755 | 73 | 415 | 1005 | 52 | 59 |
| S | 558 | 381 | 73.5 | 71.5 | 160 | 546 | 495 | 769 | 71 | 415 | 1005 | 52 | 59 |
| M | 574 | 385 | 73.3 | 72 | 176 | 558 | 510 | 784 | 71 | 415 | 1011 | 52 | 56 |
| L | 590 | 396 | 73 | 72 | 195 | 576 | 530 | 803 | 69 | 415 | 1029 | 52 | 56 |
| XL | 614 | 402 | 72.5 | 72 | 220 | 596 | 550 | 824 | 69 | 415 | 1043 | 52 | 56 |
All measurements in millimetres unless marked (°) for angles.
