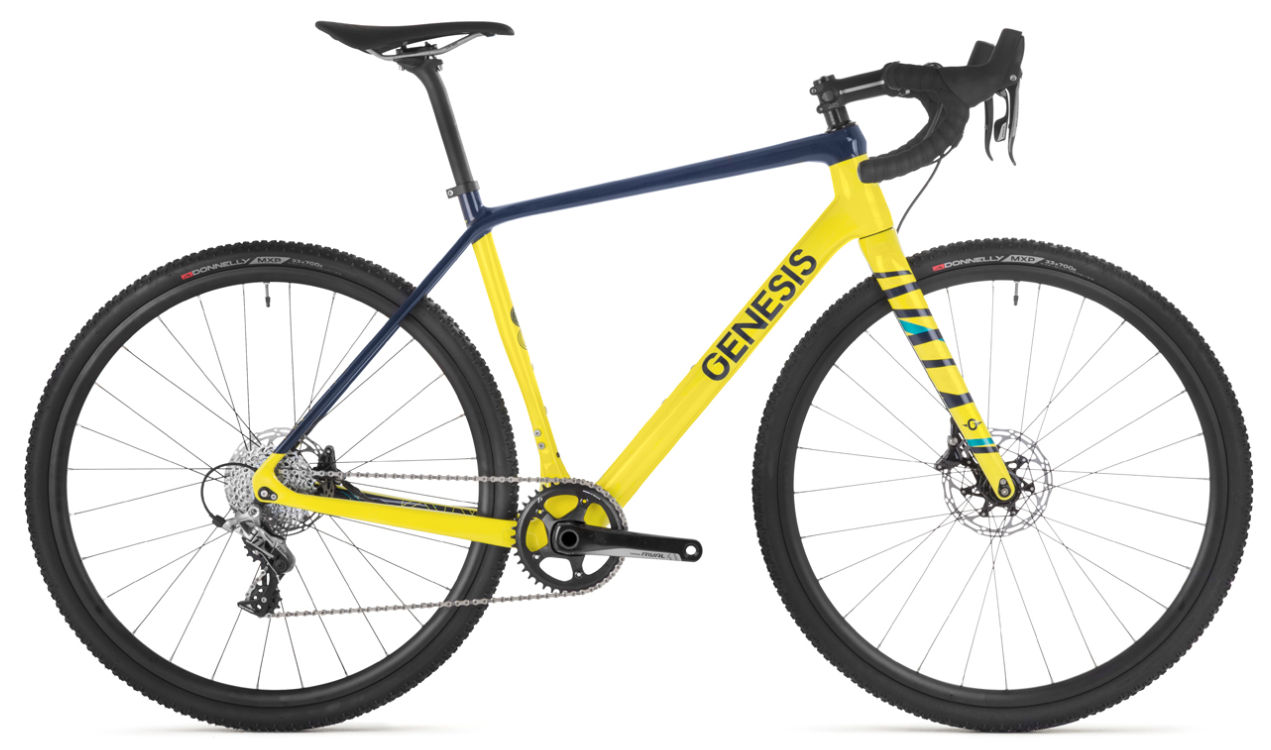

2018 Genesis Vapour Carbon geometry
Full frame geometry for the 2018 Genesis Vapour Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 532 | 366 | 74.5 | 70.5 | 113 | 516 | 470 | 758 | 70 | 425 | 1006 | 50 | 69 |
| S | 552 | 372 | 74 | 70.5 | 134 | 532 | 500 | 781 | 70 | 425 | 1024 | 50 | 69 |
| M | 574 | 380 | 73.5 | 72 | 152 | 551 | 530 | 803 | 67 | 425 | 1037 | 45 | 65 |
| L | 596 | 388 | 73.2 | 72 | 176 | 568 | 560 | 826 | 67 | 425 | 1047 | 45 | 65 |
| XL | 618 | 396 | 73 | 72 | 201 | 585 | 590 | 844 | 65 | 425 | 1063 | 45 | 65 |
All measurements in millimetres unless marked (°) for angles.
