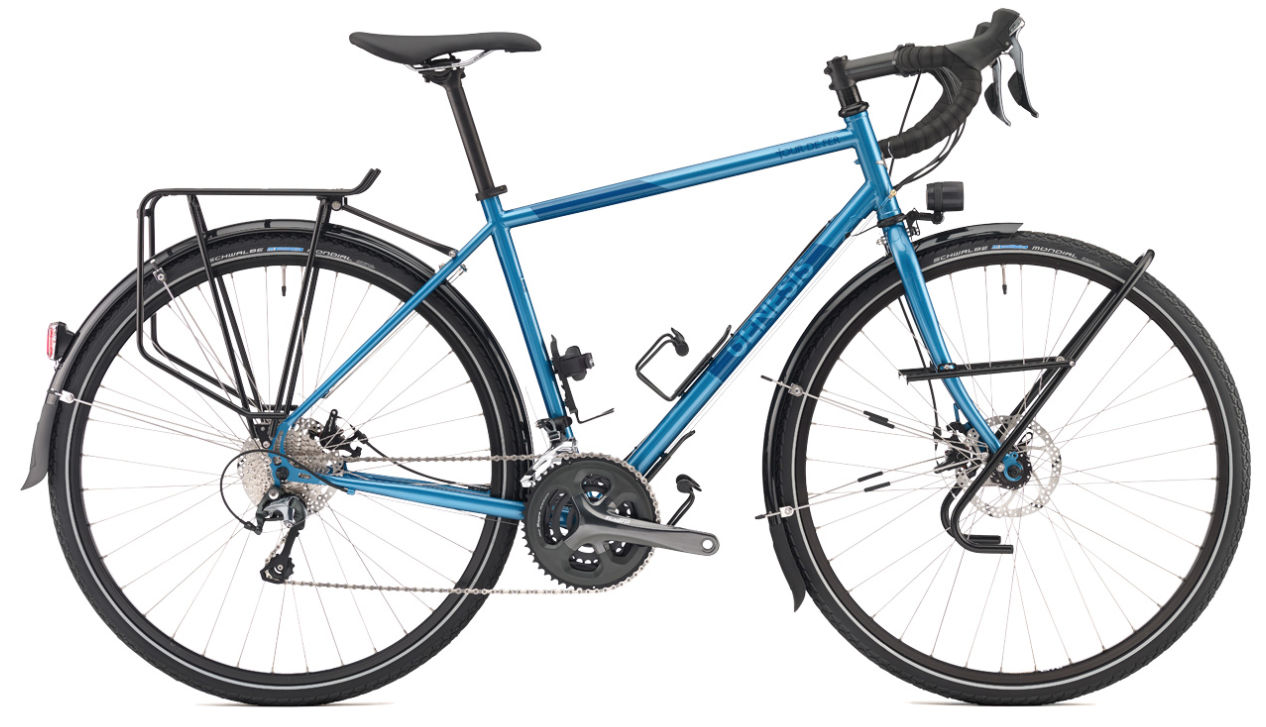

2018 Genesis Tour de Fer MKII geometry
Full frame geometry for the 2018 Genesis Tour de Fer MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 566 | 365 | 73.5 | 71 | 125 | 533 | 450 | 758 | 75 | 455 | 1041 | 55 | 61 |
| S | 580 | 375 | 73.5 | 71 | 140 | 547 | 480 | 778 | 75 | 455 | 1056 | 55 | 61 |
| M | 599 | 395 | 73 | 71 | 160 | 578 | 510 | 799 | 75 | 455 | 1083 | 55 | 61 |
| L | 618 | 415 | 73 | 71 | 180 | 604 | 530 | 807 | 75 | 455 | 1109 | 55 | 61 |
| XL | 637 | 435 | 72.5 | 71 | 200 | 636 | 570 | 843 | 75 | 455 | 1136 | 55 | 61 |
All measurements in millimetres unless marked (°) for angles.
