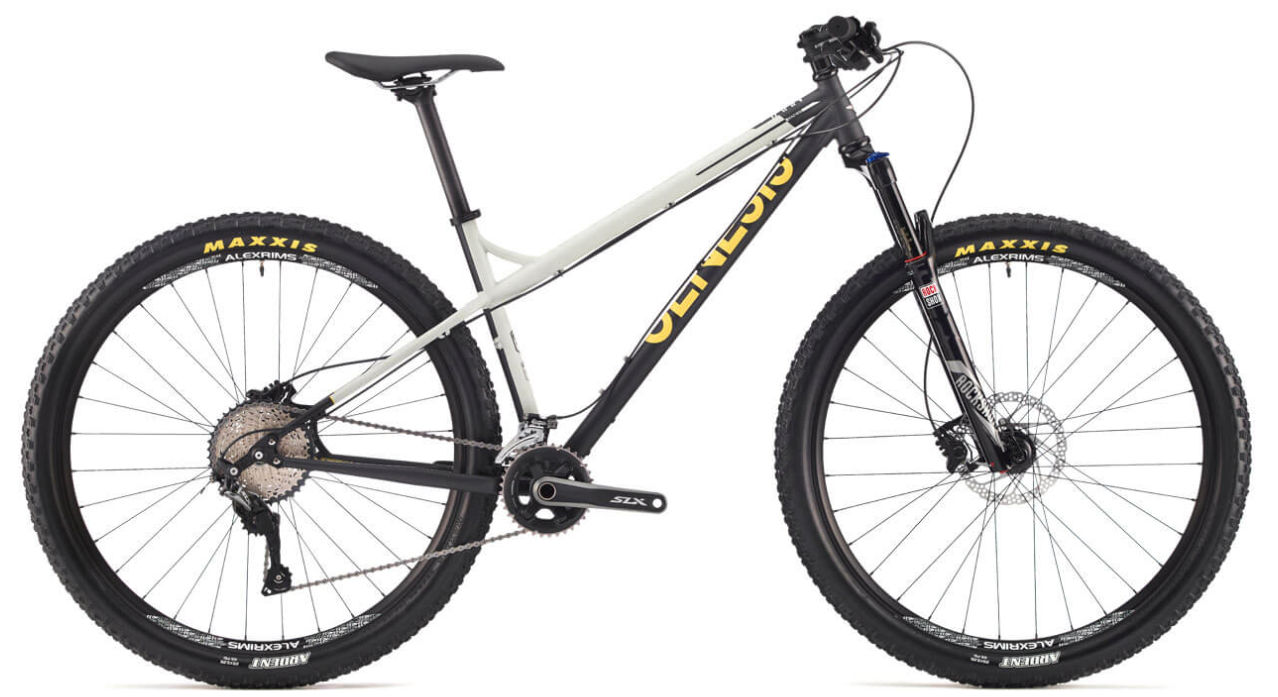

2018 Genesis Tarn 29 geometry
Full frame geometry for the 2018 Genesis Tarn 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 633 | 415 | 72 | 68 | 100 | 621 | 405 | 778 | 55 | 445 | 1154 | 51 | 94 |
| L | 638 | 465 | 72 | 68 | 105 | 672 | 483 | 785 | 55 | 445 | 1197 | 51 | 94 |
| M | 638 | 440 | 72 | 68 | 105 | 647 | 445 | 774 | 55 | 445 | 1172 | 51 | 94 |
| XL | 643 | 490 | 72 | 68 | 110 | 699 | 525 | 805 | 55 | 445 | 1224 | 51 | 94 |
All measurements in millimetres unless marked (°) for angles.
