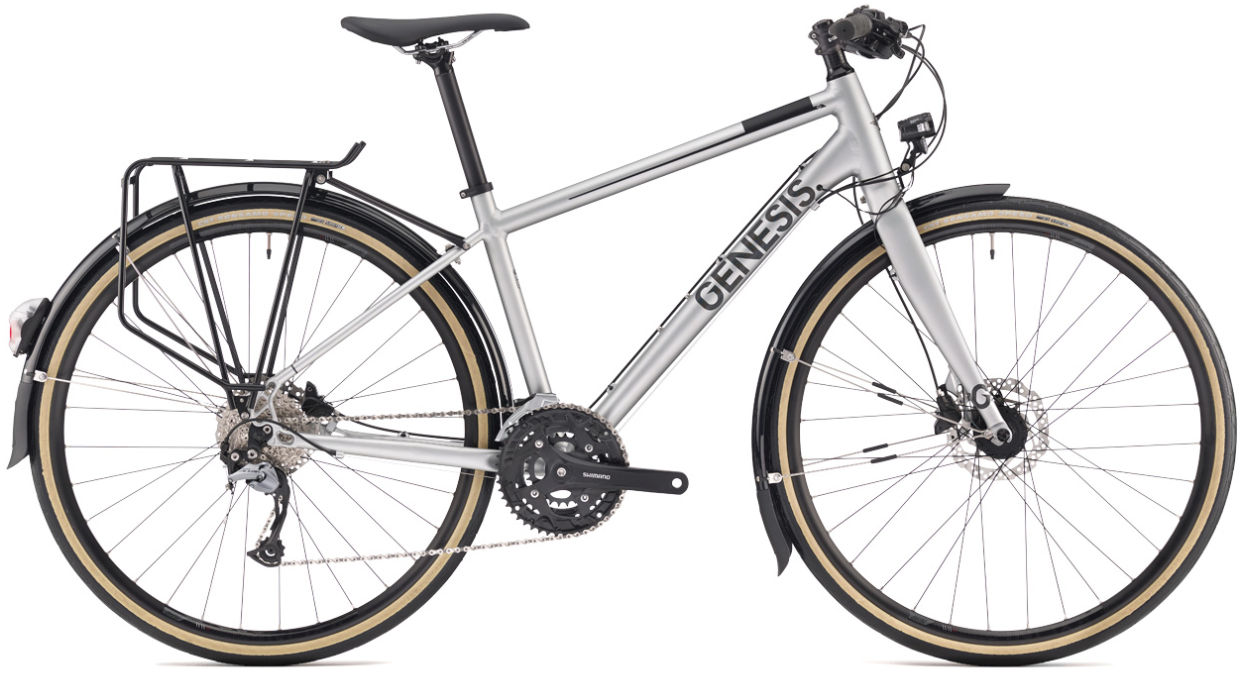

2018 Genesis Skyline geometry
Full frame geometry for the 2018 Genesis Skyline, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 535 | 335 | 73 | 70 | 100 | 549 | 355 | 716 | 60 | 440 | 1047 | 50 | 74 |
| S | 573 | 385 | 73 | 70 | 140 | 560 | 410 | 764 | 60 | 440 | 1061 | 50 | 74 |
| M | 587 | 410 | 73 | 70 | 155 | 589 | 435 | 779 | 60 | 440 | 1091 | 50 | 74 |
| L | 601 | 435 | 73 | 70 | 170 | 619 | 485 | 809 | 60 | 440 | 1121 | 50 | 74 |
| XL | 615 | 460 | 73 | 70 | 185 | 648 | 535 | 838 | 60 | 440 | 1151 | 50 | 74 |
All measurements in millimetres unless marked (°) for angles.
