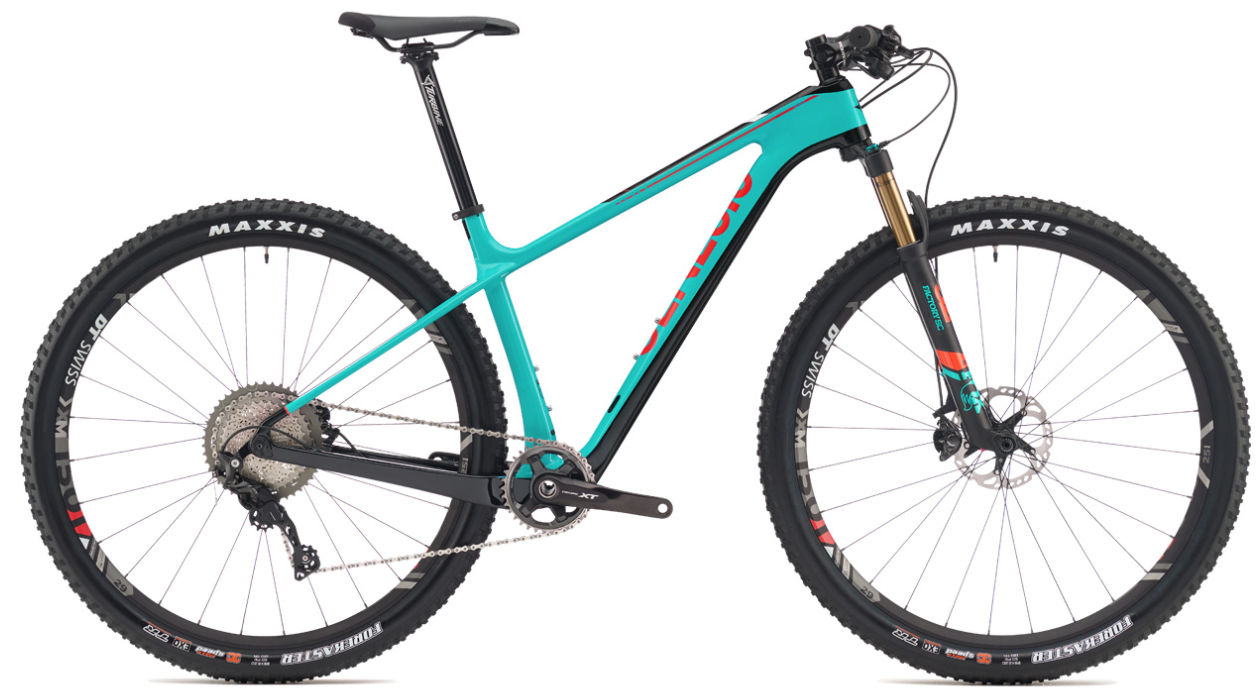

2018 Genesis Mantle geometry
Full frame geometry for the 2018 Genesis Mantle, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 604 | 400 | 73 | 69 | 90 | 585 | 381 | 780 | 65 | 435 | 1092 | 51 | 87 |
| M | 609 | 425 | 73 | 69 | 95 | 611 | 435 | 775 | 65 | 435 | 1119 | 51 | 87 |
| L | 613 | 450 | 73 | 69 | 100 | 638 | 495 | 786 | 65 | 435 | 1145 | 51 | 87 |
| XL | 632 | 475 | 73 | 69 | 120 | 668 | 535 | 816 | 65 | 435 | 1177 | 51 | 87 |
All measurements in millimetres unless marked (°) for angles.
