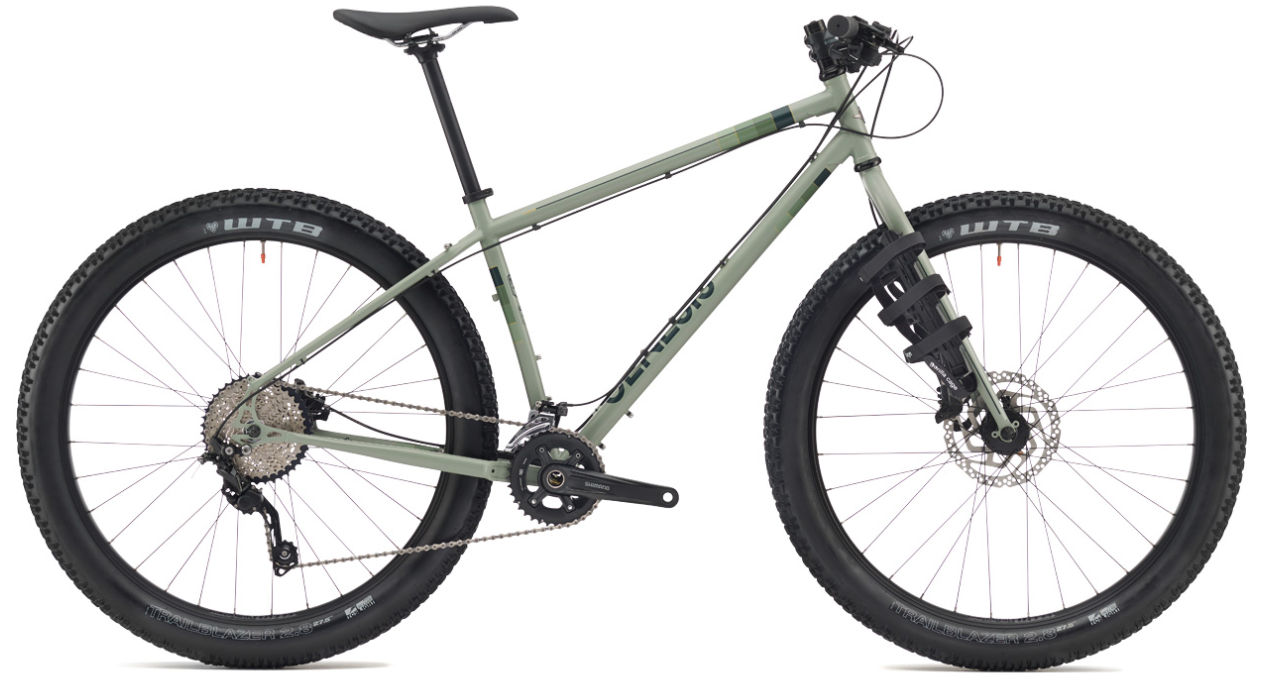

2018 Genesis Longitude MKII geometry
Full frame geometry for the 2018 Genesis Longitude MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 596 | 395 | 72.5 | 70 | 95 | 591 | 406 | 766 | 77 | 438 | 1105 | 51 | 80 |
| M | 605 | 420 | 72.5 | 70 | 95 | 616 | 445 | 787 | 77 | 438 | 1134 | 51 | 80 |
| L | 615 | 445 | 72.5 | 70 | 105 | 644 | 480 | 806 | 77 | 438 | 1162 | 51 | 80 |
| XL | 629 | 465 | 72.5 | 70 | 115 | 667 | 520 | 837 | 77 | 438 | 1187 | 51 | 80 |
All measurements in millimetres unless marked (°) for angles.
