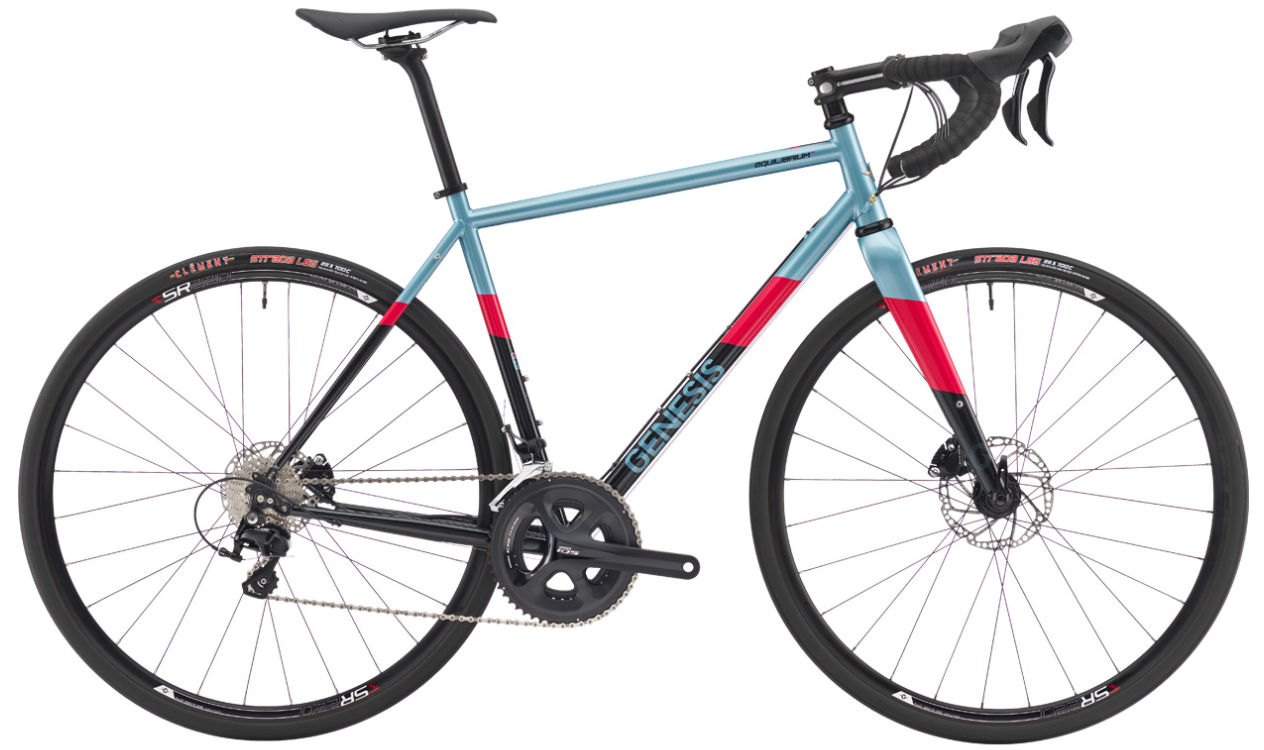

2018 Genesis Equilibrium Disc MKII geometry
Full frame geometry for the 2018 Genesis Equilibrium Disc MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 545 | 365 | 74 | 71 | 105 | 522 | 460 | 749 | 72 | 420 | 990 | 50 | 69 |
| S | 559 | 375 | 73.5 | 71.5 | 120 | 540 | 490 | 773 | 72 | 420 | 1000 | 50 | 66 |
| M | 584 | 386 | 73.5 | 73 | 140 | 559 | 530 | 815 | 72 | 420 | 1003 | 50 | 57 |
| L | 599 | 395 | 73 | 72 | 160 | 578 | 550 | 826 | 72 | 420 | 1019 | 50 | 57 |
| XL | 618 | 405 | 72.5 | 72 | 180 | 600 | 580 | 899 | 72 | 420 | 1035 | 50 | 57 |
All measurements in millimetres unless marked (°) for angles.
