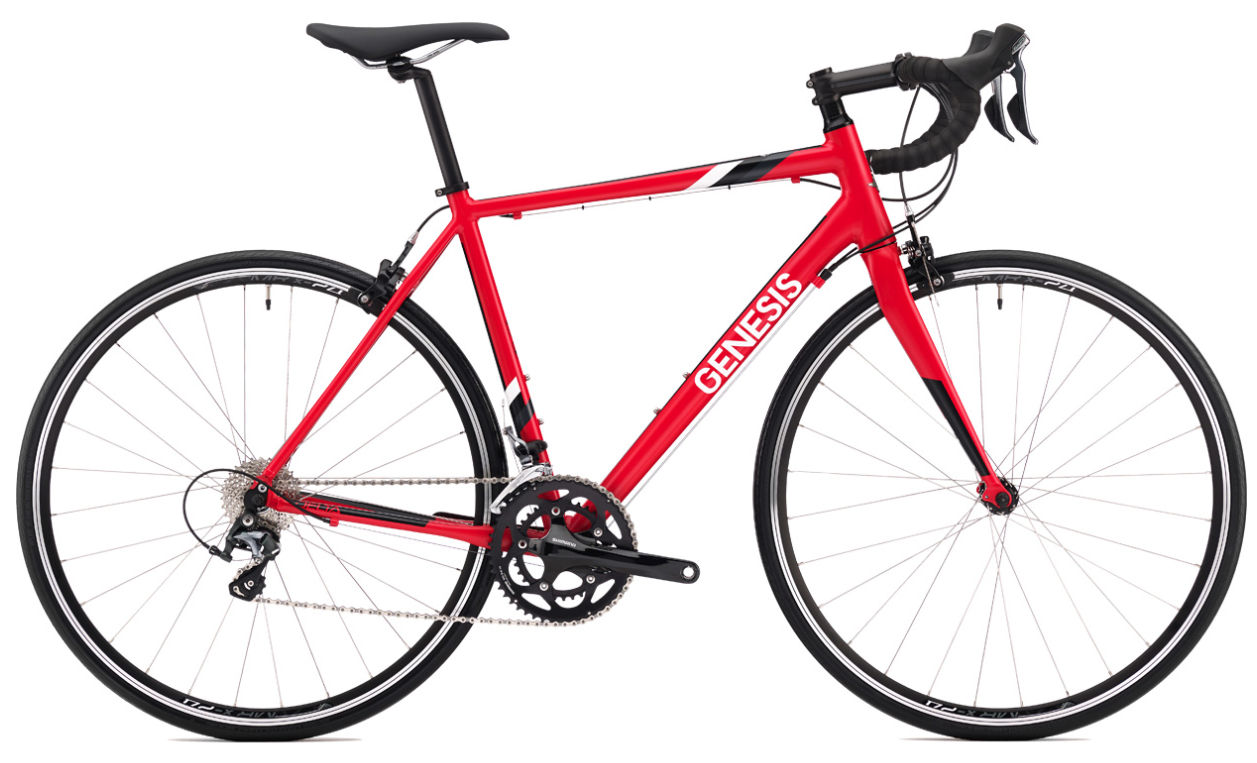

2018 Genesis Delta geometry
Full frame geometry for the 2018 Genesis Delta, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 538 | 365 | 74 | 71 | 130 | 519 | 460 | 758 | 72 | 420 | 992 | 50 | 62 |
| S | 559 | 375 | 73.5 | 71.5 | 150 | 541 | 490 | 781 | 72 | 420 | 1005 | 50 | 59 |
| M | 578 | 385 | 73.5 | 71.5 | 170 | 556 | 520 | 803 | 72 | 420 | 1021 | 50 | 59 |
| L | 599 | 395 | 73 | 72 | 190 | 578 | 540 | 822 | 72 | 420 | 1032 | 50 | 56 |
| XL | 618 | 405 | 73 | 72 | 210 | 594 | 570 | 845 | 72 | 420 | 1049 | 50 | 56 |
All measurements in millimetres unless marked (°) for angles.
