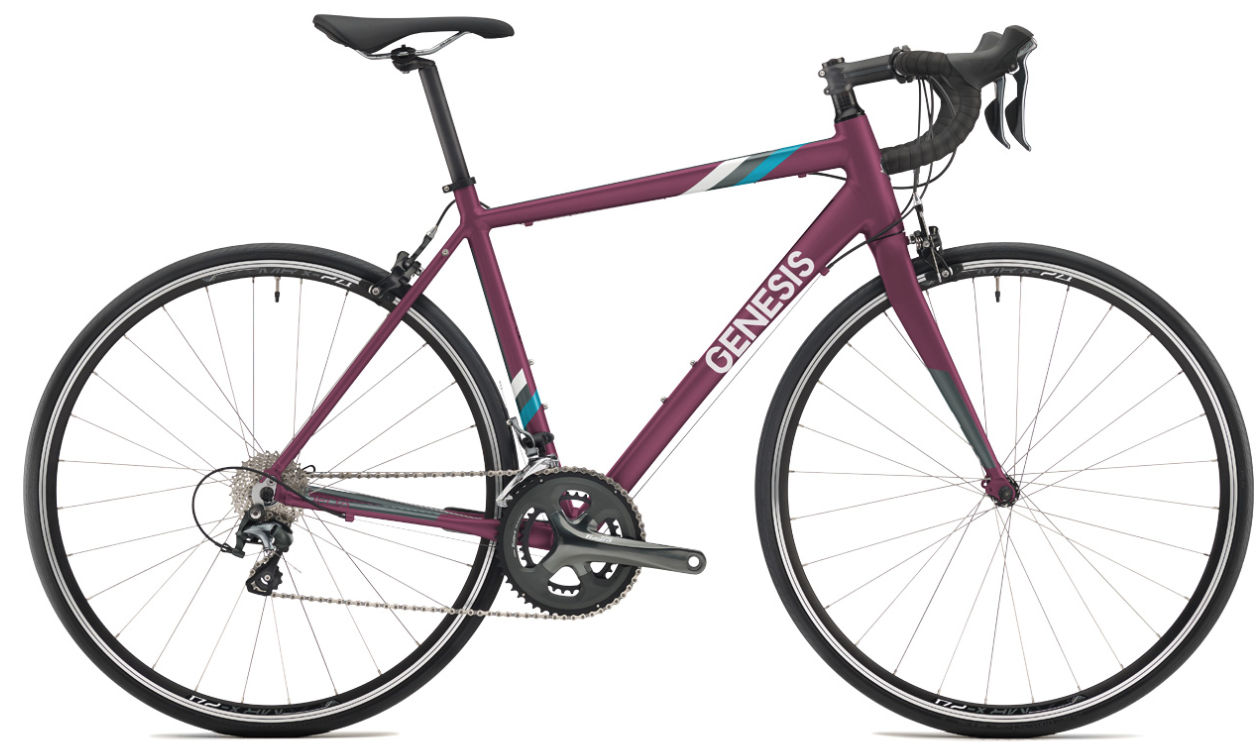

2018 Genesis Delta W geometry
Full frame geometry for the 2018 Genesis Delta W, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 527 | 374 | 75 | 71.5 | 125 | 515 | 450 | 735 | 73 | 415 | 988 | 50 | 61 |
| XS | 541 | 375 | 74 | 71.5 | 140 | 530 | 475 | 758 | 73 | 415 | 992 | 50 | 61 |
| S | 559 | 380 | 73.5 | 71.5 | 160 | 546 | 495 | 781 | 71 | 415 | 1001 | 50 | 61 |
| M | 575 | 385 | 73.2 | 72 | 176 | 558 | 510 | 803 | 71 | 415 | 1009 | 50 | 58 |
All measurements in millimetres unless marked (°) for angles.
