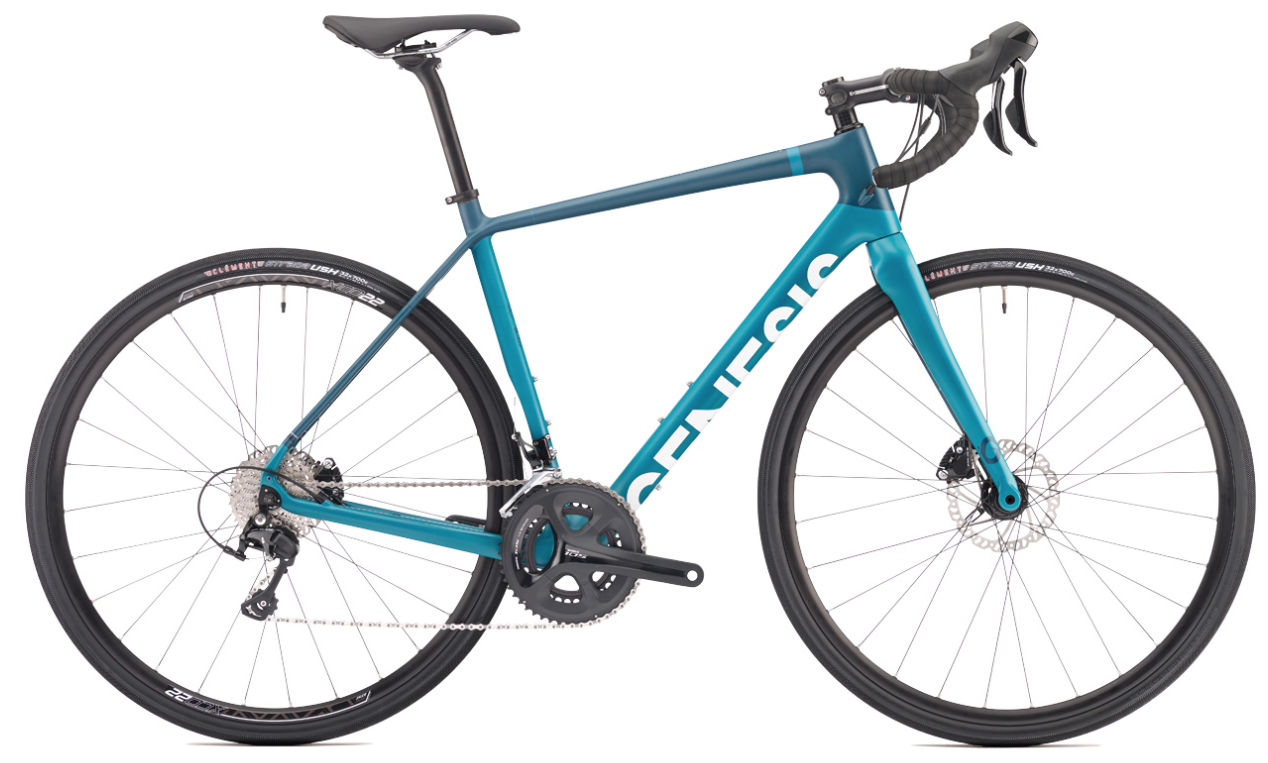

2018 Genesis Datum W geometry
Full frame geometry for the 2018 Genesis Datum W, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 544 | 365 | 73.5 | 72 | 115 | 526 | 460 | 752 | 72 | 420 | 985 | 50 | 59 |
| S | 563 | 375 | 73.5 | 72 | 135 | 542 | 490 | 777 | 72 | 420 | 1001 | 50 | 59 |
| M | 585 | 385 | 73.2 | 72 | 155 | 561 | 520 | 801 | 72 | 420 | 1017 | 50 | 59 |
All measurements in millimetres unless marked (°) for angles.
