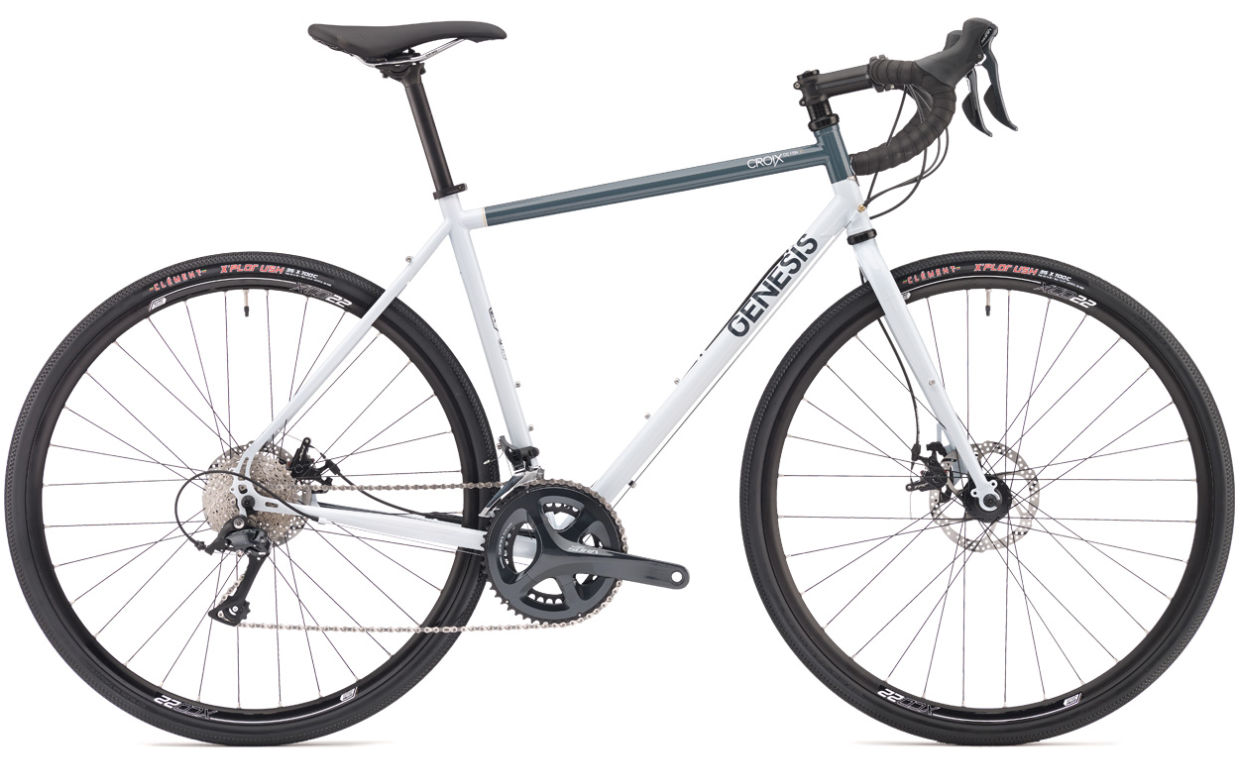

2018 Genesis Croix de Fer MKII geometry
Full frame geometry for the 2018 Genesis Croix de Fer MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 553 | 365 | 74 | 71 | 115 | 524 | 470 | 761 | 73 | 430 | 1007 | 50 | 69 |
| S | 572 | 375 | 73.5 | 71 | 135 | 544 | 500 | 784 | 73 | 430 | 1023 | 50 | 69 |
| M | 593 | 385 | 73.5 | 71.5 | 155 | 561 | 530 | 808 | 73 | 430 | 1035 | 50 | 66 |
| L | 612 | 395 | 73 | 71.5 | 175 | 582 | 550 | 826 | 73 | 430 | 1052 | 50 | 66 |
| XL | 633 | 405 | 72.5 | 72 | 195 | 605 | 580 | 850 | 73 | 430 | 1063 | 50 | 63 |
All measurements in millimetres unless marked (°) for angles.
