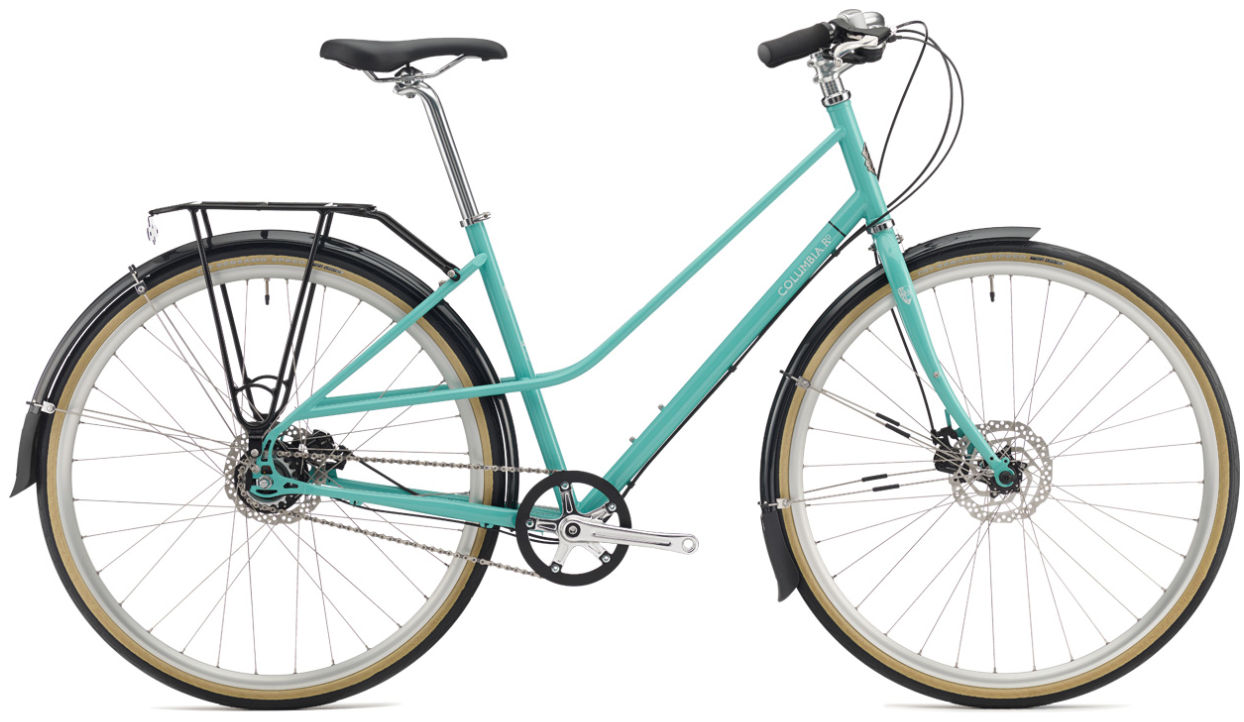

2018 Genesis Columbia Rd geometry
Full frame geometry for the 2018 Genesis Columbia Rd, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 603 | 375 | 72 | 71 | 165 | 571 | 420 | 644 | 73 | 450 | 1059 | 55 | 60 |
| M | 622 | 395 | 72 | 71 | 185 | 597 | 480 | 645 | 73 | 450 | 1086 | 55 | 60 |
| L | 646 | 415 | 72 | 71 | 210 | 625 | 540 | 648 | 73 | 450 | 1114 | 55 | 60 |
All measurements in millimetres unless marked (°) for angles.
