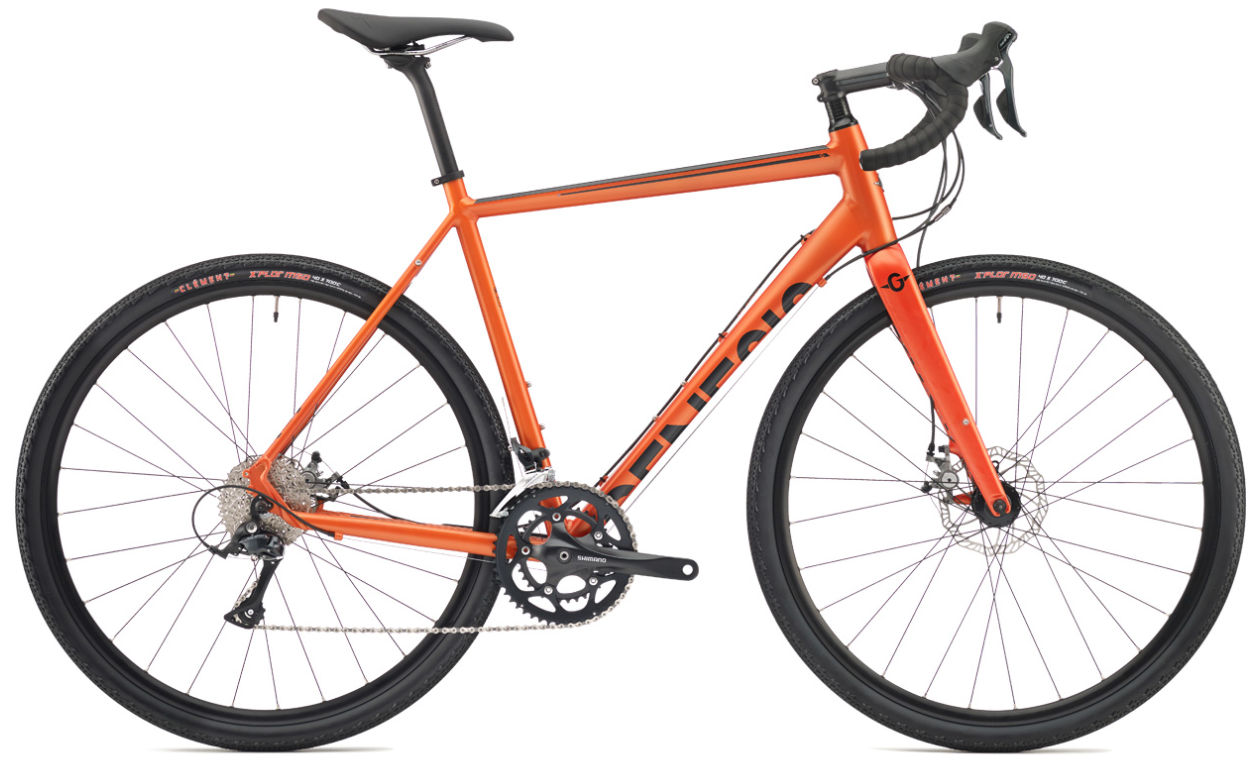

2018 Genesis CDA MKII geometry
Full frame geometry for the 2018 Genesis CDA MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 546 | 365 | 74 | 71 | 120 | 522 | 480 | 749 | 70 | 430 | 1006 | 50 | 69 |
| S | 567 | 375 | 73.5 | 71.5 | 140 | 543 | 500 | 772 | 70 | 430 | 1018 | 50 | 66 |
| M | 581 | 386 | 73 | 71.5 | 155 | 564 | 530 | 794 | 70 | 430 | 1034 | 50 | 66 |
| L | 600 | 397 | 73 | 71.5 | 175 | 580 | 560 | 816 | 70 | 430 | 1051 | 50 | 66 |
| XL | 619 | 406 | 72.5 | 71.5 | 195 | 601 | 580 | 850 | 70 | 430 | 1066 | 50 | 66 |
All measurements in millimetres unless marked (°) for angles.
