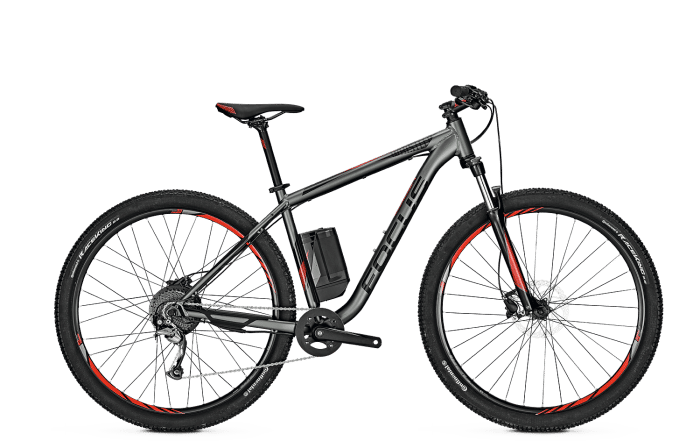

2018 Focus Whistler2 geometry
Full frame geometry for the 2018 Focus Whistler2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 602 | 375 | 73.5 | 69 | 110 | 553 | 380 | 48 | 448 | 1078 | 42 |
| S | 611 | 385 | 73.5 | 69 | 120 | 566 | 420 | 48 | 448 | 1092 | 42 |
| M | 637 | 404 | 74 | 70 | 110 | 587 | 460 | 62 | 448 | 1102 | 46 |
| L | 656 | 420 | 74 | 70 | 130 | 608 | 500 | 62 | 448 | 1129 | 46 |
| XL | 675 | 430 | 74 | 70 | 150 | 623 | 540 | 62 | 448 | 1145 | 46 |
All measurements in millimetres unless marked (°) for angles.
