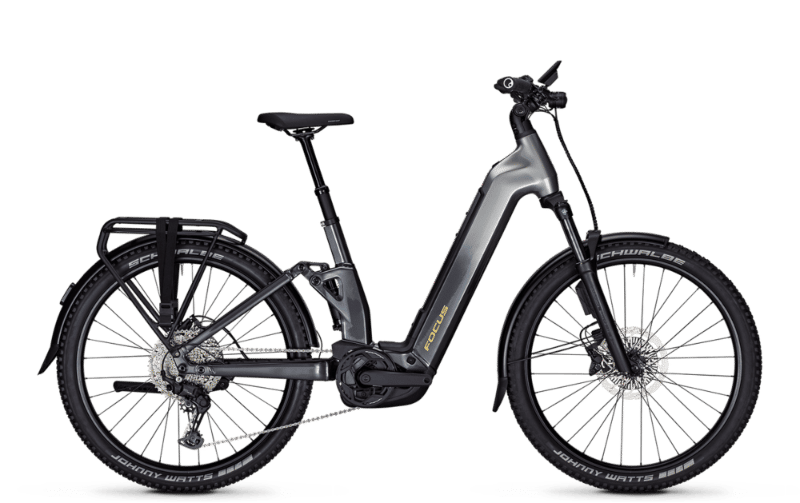

2026 Focus AVENTURA² FS geometry
Full frame geometry for the 2026 Focus AVENTURA² FS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 642 | 420 | 74 | 68 | 150 | 604 | 400 | 25 | 495 | 1211 | 44 |
| M | 660 | 430 | 74 | 68 | 170 | 619 | 440 | 25 | 495 | 1229 | 44 |
| L | 679 | 450 | 74 | 68 | 190 | 645 | 480 | 25 | 495 | 1256 | 44 |
| XL | 697 | 470 | 74 | 68 | 210 | 670 | 520 | 25 | 495 | 1284 | 44 |
All measurements in millimetres unless marked (°) for angles.
