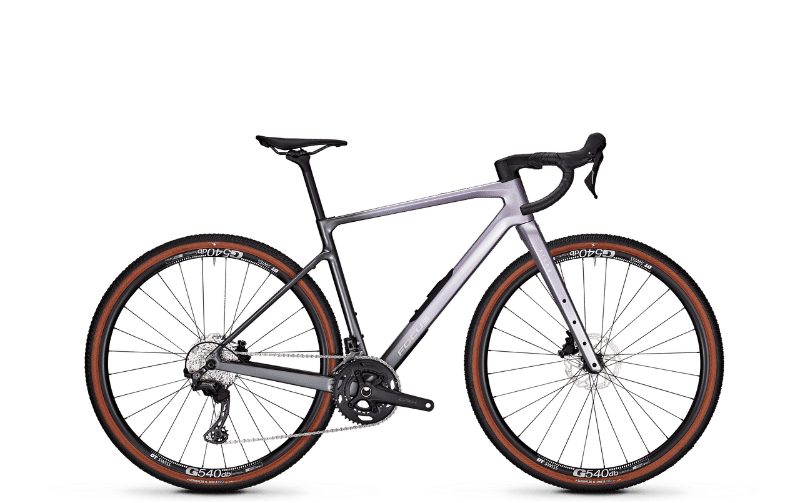

2026 Focus Atlas 8.7 geometry
Full frame geometry for the 2026 Focus Atlas 8.7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 546 | 375 | 74.5 | 70.5 | 100 | 511 | 425 | 770 | 75 | 425 | 1016 | 53 |
| S | 557 | 390 | 74 | 71 | 110 | 535 | 455 | 789 | 75 | 425 | 1030 | 53 |
| M | 576 | 395 | 73.5 | 71 | 130 | 550 | 485 | 813 | 75 | 425 | 1041 | 53 |
| L | 595 | 405 | 73.5 | 71 | 150 | 566 | 515 | 836 | 75 | 425 | 1058 | 53 |
| XL | 623 | 420 | 73 | 71 | 180 | 596 | 545 | 863 | 75 | 425 | 1083 | 53 |
All measurements in millimetres unless marked (°) for angles.
