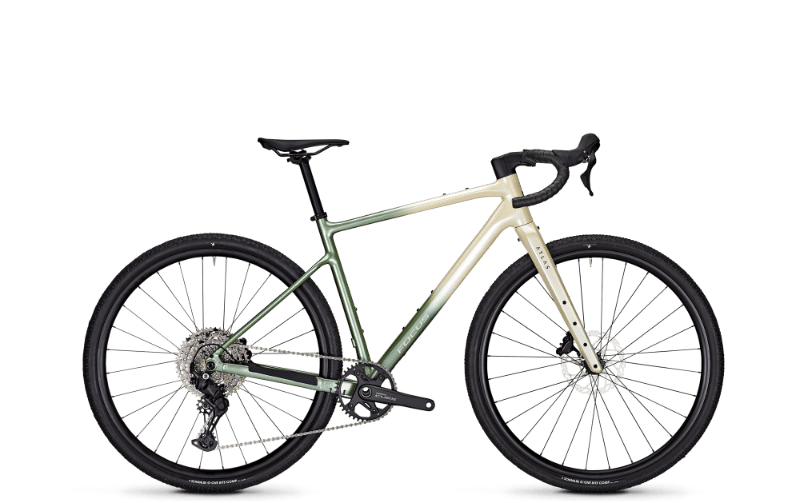

2026 Focus Atlas 6.7 geometry
Full frame geometry for the 2026 Focus Atlas 6.7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 556 | 365 | 74.5 | 70 | 105 | 506 | 440 | 757 | 75 | 425 | 1015 | 53 |
| S | 572 | 380 | 74 | 70.5 | 120 | 531 | 470 | 778 | 75 | 425 | 1031 | 53 |
| M | 591 | 385 | 73.5 | 70.5 | 140 | 548 | 500 | 802 | 75 | 425 | 1042 | 53 |
| L | 610 | 395 | 73.5 | 70.5 | 160 | 564 | 530 | 825 | 75 | 425 | 1059 | 53 |
| XL | 638 | 410 | 73 | 70.5 | 190 | 593 | 560 | 852 | 75 | 425 | 1084 | 53 |
All measurements in millimetres unless marked (°) for angles.
