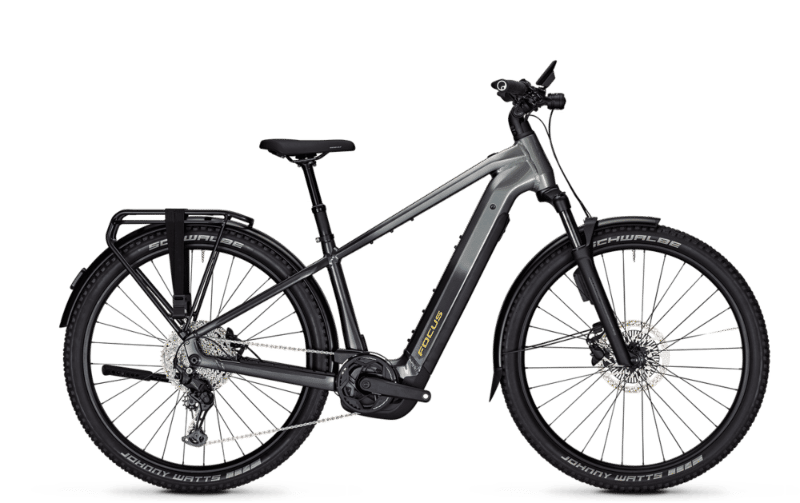

2026 Focus AVENTURA2 geometry
Full frame geometry for the 2026 Focus AVENTURA2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 670 | 405 | 73.5 | 68 | 145 | 603 | 400 | 806 | 65 | 470 | 1162 | 44 |
| M | 679 | 425 | 73.5 | 68 | 155 | 626 | 440 | 823 | 65 | 470 | 1186 | 44 |
| L | 688 | 445 | 73.5 | 68 | 165 | 649 | 480 | 837 | 65 | 470 | 1210 | 44 |
| XL | 707 | 465 | 73.5 | 68 | 185 | 674 | 520 | 858 | 65 | 470 | 1237 | 44 |
All measurements in millimetres unless marked (°) for angles.
