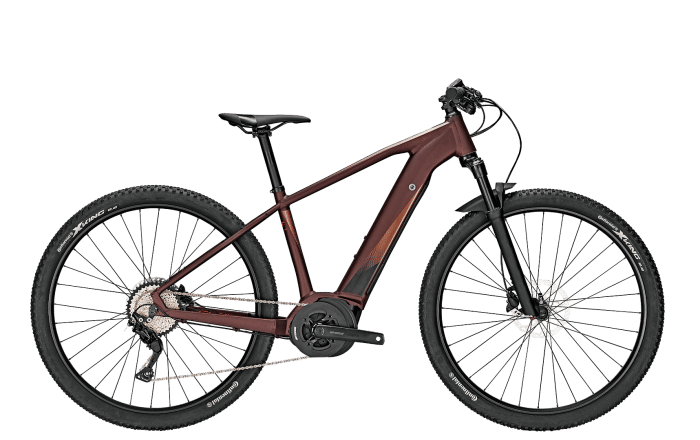

2018 Focus Jarifa2 geometry
Full frame geometry for the 2018 Focus Jarifa2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 604 | 375 | 73.5 | 69 | 120 | 554 | 360 | 48 | 475 | 1106 | 42 |
| XS | 614 | 385 | 73.5 | 69 | 130 | 567 | 400 | 48 | 475 | 1120 | 42 |
| M | 636 | 405 | 74 | 70 | 120 | 508 | 440 | 60 | 490 | 1155 | 51 |
| L | 655 | 420 | 74 | 70 | 140 | 608 | 480 | 60 | 490 | 1177 | 51 |
| XL | 674 | 430 | 74 | 70 | 160 | 623 | 520 | 60 | 490 | 1194 | 51 |
All measurements in millimetres unless marked (°) for angles.
