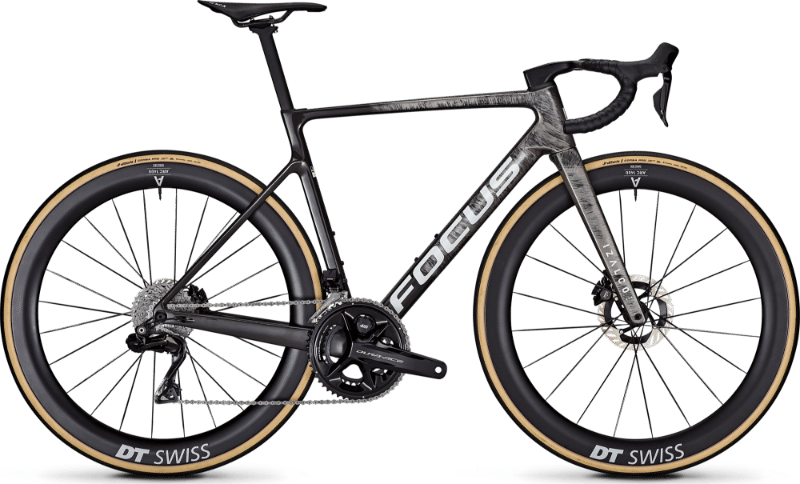

2026 Focus Izalco Max geometry
Full frame geometry for the 2026 Focus Izalco Max, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 500 | 370 | 75 | 70 | 90 | 505 | 455 | 746 | 72 | 410 | 975 | 46 |
| XS | 513 | 375 | 74.5 | 71 | 100 | 517 | 475 | 762 | 72 | 410 | 976 | 46 |
| S | 531 | 378 | 74 | 72 | 115 | 530 | 495 | 778 | 72 | 410 | 975 | 46 |
| M | 552 | 380 | 73.5 | 72.5 | 135 | 543 | 515 | 795 | 72 | 410 | 979 | 46 |
| L | 571 | 399 | 73.5 | 72.5 | 155 | 568 | 535 | 814 | 72 | 410 | 1004 | 46 |
| XL | 592 | 401 | 73 | 73 | 175 | 582 | 555 | 835 | 72 | 410 | 1008 | 46 |
| XXL | 611 | 420 | 73 | 73 | 195 | 607 | 585 | 857 | 72 | 410 | 1033 | 46 |
All measurements in millimetres unless marked (°) for angles.
