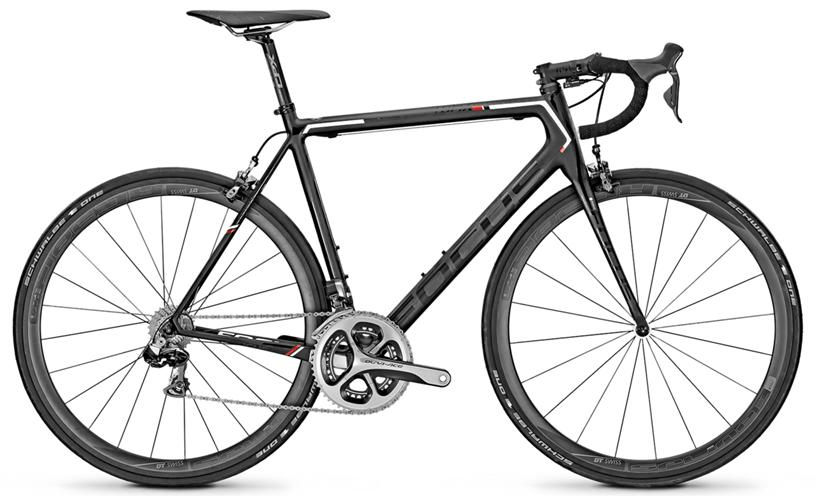

2015 Focus Izalco Max geometry
Full frame geometry for the 2015 Focus Izalco Max, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 508 | 375 | 74 | 71 | 110 | 521 | 480 | 70 | 574 | 405 | 970 | 43 | 70 |
| XS | 515 | 379 | 73.7 | 71.5 | 115 | 530 | 500 | 70 | 576 | 405 | 972 | 43 | 66 |
| S | 520 | 384 | 73.7 | 71.8 | 120 | 536 | 520 | 70 | 580 | 405 | 977 | 43 | 65 |
| M | 537 | 390 | 73.5 | 72.5 | 135 | 549 | 540 | 70 | 585 | 405 | 981 | 43 | 60 |
| L | 565 | 398 | 73.5 | 73.5 | 160 | 565 | 560 | 70 | 592 | 405 | 988 | 43 | 54 |
| XL | 584 | 405 | 73.3 | 73.5 | 180 | 580 | 580 | 70 | 604 | 405 | 1001 | 43 | 54 |
| XXL | 603 | 420 | 73 | 73.5 | 200 | 604 | 610 | 70 | 625 | 405 | 1022 | 43 | 54 |
All measurements in millimetres unless marked (°) for angles.
