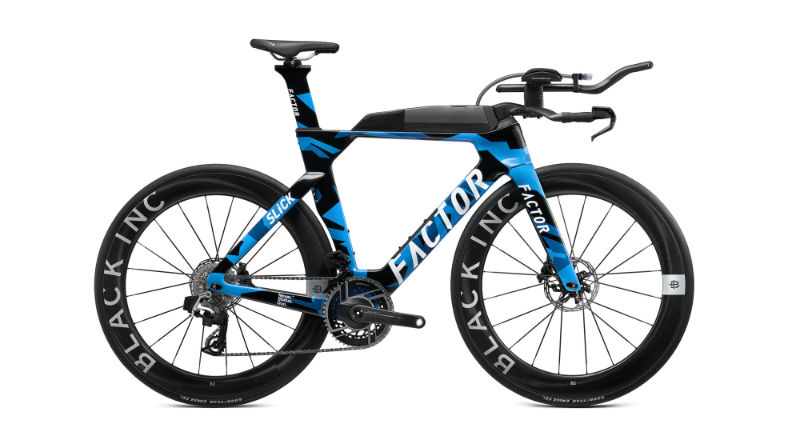

2026 Factor Slick geometry
Full frame geometry for the 2026 Factor Slick, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 470 | 385 | 76 | 71.5 | 478 | 725 | 78 | 405 | 968 | 51 | 61 |
| 52 | 495 | 400 | 76 | 72.5 | 504 | 750 | 78 | 405 | 975 | 43 | 62 |
| 54 | 520 | 415 | 76 | 72.5 | 530 | 777 | 76 | 405 | 998 | 43 | 62 |
| 56 | 545 | 430 | 76 | 72.5 | 556 | 802 | 76 | 405 | 1021 | 43 | 62 |
| 58 | 570 | 445 | 76 | 72.5 | 582 | 882 | 76 | 405 | 1044 | 43 | 62 |
All measurements in millimetres unless marked (°) for angles.
