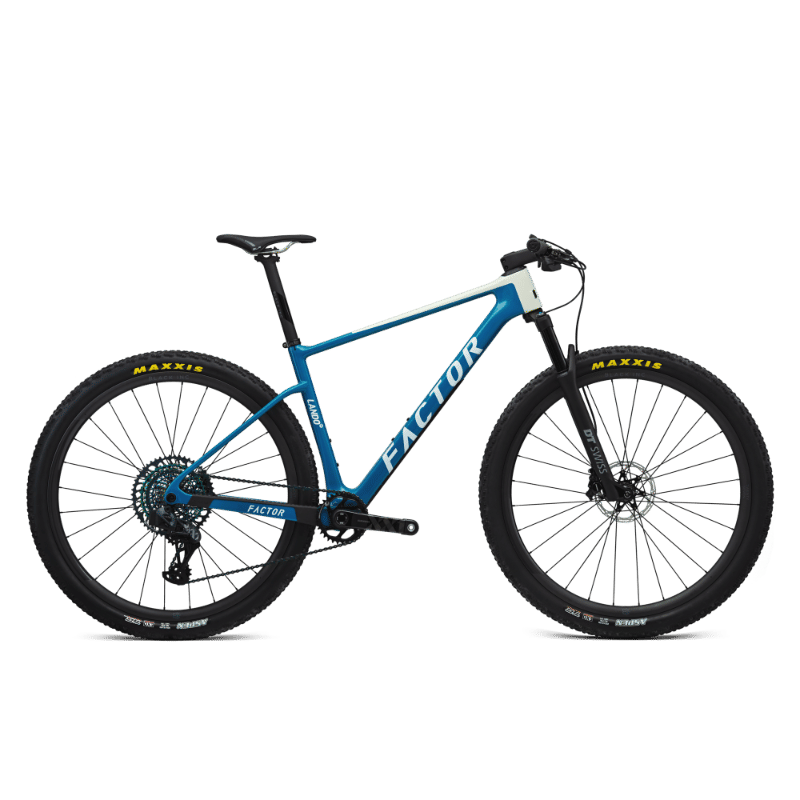

2026 Factor Lando HT geometry
Full frame geometry for the 2026 Factor Lando HT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 609 | 394 | 74.5 | 68.5 | 430 | 56.5 | 430 | 1092 | 51 |
| S | 613.5 | 415 | 74 | 68.5 | 446 | 56.5 | 430 | 1115 | 51 |
| M | 618.5 | 445 | 73.5 | 68.5 | 462 | 54.5 | 430 | 1147 | 51 |
| L | 633 | 476 | 73.5 | 68.5 | 478 | 54.5 | 430 | 1184 | 51 |
All measurements in millimetres unless marked (°) for angles.
