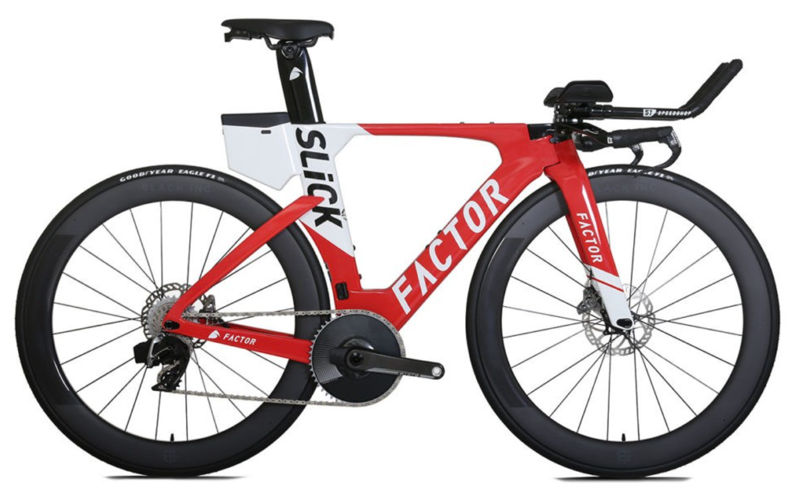

2022 Factor Slick geometry
Full frame geometry for the 2022 Factor Slick, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 500 | 390 | 78 | 72.5 | 769 | 75 | 576 | 400 | 45 |
| M | 525 | 405 | 78 | 72.5 | 794 | 75 | 599 | 400 | 45 |
| L | 550 | 425 | 78 | 72.5 | 819 | 75 | 627 | 400 | 45 |
| XL | 580 | 440 | 78 | 72.5 | 849 | 75 | 650 | 400 | 45 |
All measurements in millimetres unless marked (°) for angles.
