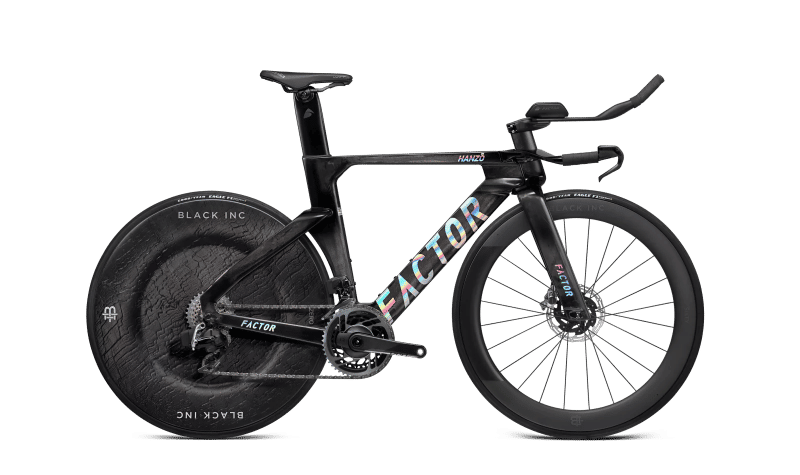

2026 Factor Hanzo geometry
Full frame geometry for the 2026 Factor Hanzo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 501 | 390 | 78 | 72 | 491 | 72 | 405 | 975 | 45 | 64 |
| M | 516 | 405 | 78 | 72.5 | 510 | 72 | 405 | 991 | 45 | 60 |
| L | 541 | 419 | 78 | 72.5 | 535 | 72 | 405 | 1012 | 45 | 60 |
| XL | 566 | 440 | 78 | 72.5 | 560 | 72 | 405 | 1041 | 45 | 60 |
All measurements in millimetres unless marked (°) for angles.
