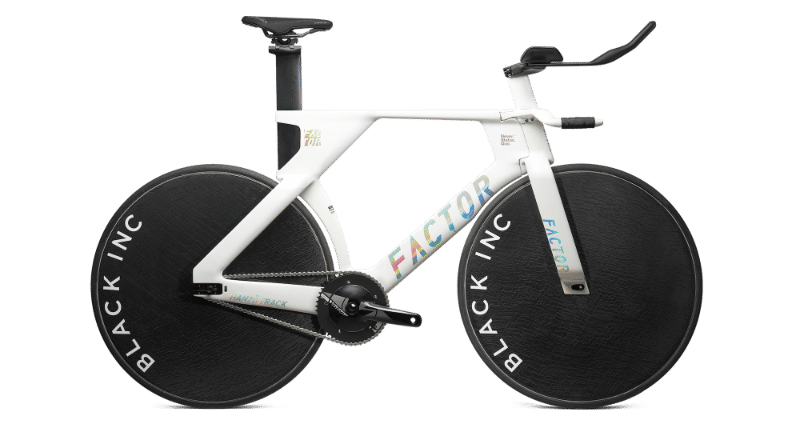

2026 Factor Hanzo Track geometry
Full frame geometry for the 2026 Factor Hanzo Track, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S/M | 504 | 414.5 | 76 | 72.7 | 517 | 814 | 50 | 375 | 969 | 46 | 57 |
| M/L | 520 | 433.5 | 76 | 72.7 | 530 | 825 | 55 | 375 | 991 | 46 | 57 |
All measurements in millimetres unless marked (°) for angles.
