2026 Factor · MDB

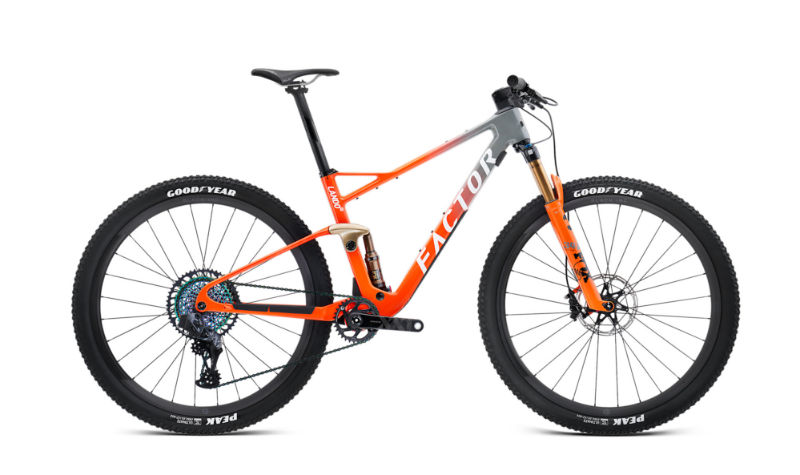

2026 Factor Lando XC Fox geometry
Full frame geometry for the 2026 Factor Lando XC Fox, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 594.5 | 410 | 75.5 | 67 | 725 | 40 | 435 | 1128 | 51 | 95.5 |
| M | 599 | 430 | 75.5 | 67 | 770 | 40 | 435 | 1150 | 51 | 95.5 |
| L | 608 | 460 | 75.5 | 67 | 781 | 40 | 435 | 1184 | 51 | 95.5 |
| XL | 619 | 490 | 75.2 | 67 | 812 | 40 | 435 | 1218 | 51 | 95.5 |
All measurements in millimetres unless marked (°) for angles.
