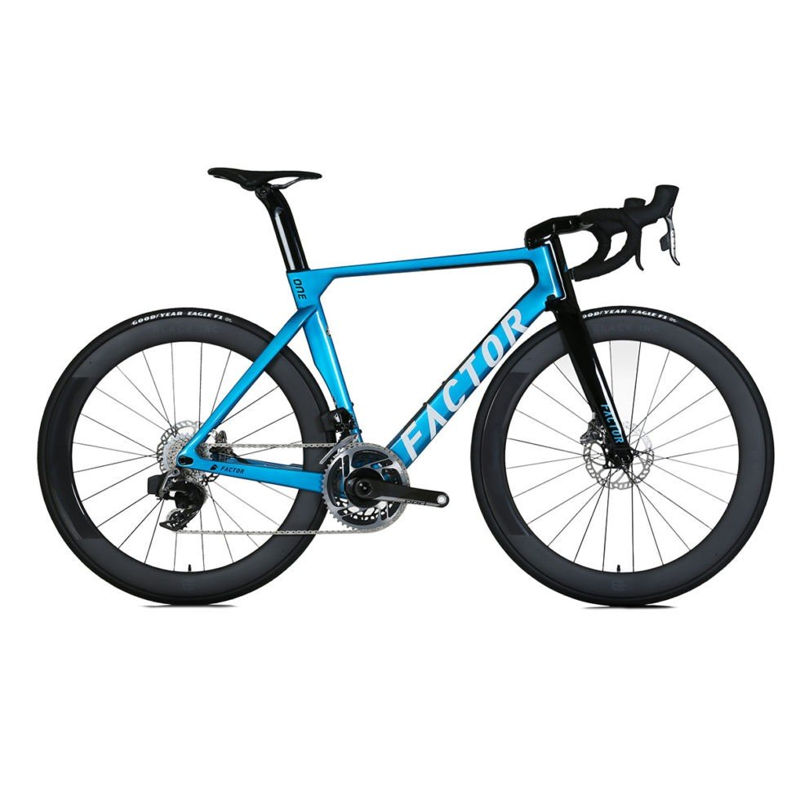

2022 Factor One geometry
Full frame geometry for the 2022 Factor One, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 488 | 367 | 73 | 70.5 | 83 | 507 | 430 | 68 | 405 | 53 |
| 49 | 495 | 367 | 73 | 70.5 | 83 | 518 | 456 | 68 | 405 | 53 |
| 52 | 520 | 376 | 73 | 72.2 | 103 | 535 | 480 | 68 | 405 | 53 |
| 54 | 542 | 384 | 73 | 73.1 | 119 | 549 | 502 | 68 | 405 | 43 |
| 56 | 565 | 392 | 73 | 73.5 | 142 | 565 | 525 | 68 | 405 | 43 |
| 58 | 588 | 401 | 73 | 73.5 | 166 | 581 | 548 | 68 | 408 | 43 |
| 61 | 611 | 409 | 73 | 73.5 | 190 | 596 | 570 | 68 | 410 | 43 |
All measurements in millimetres unless marked (°) for angles.
