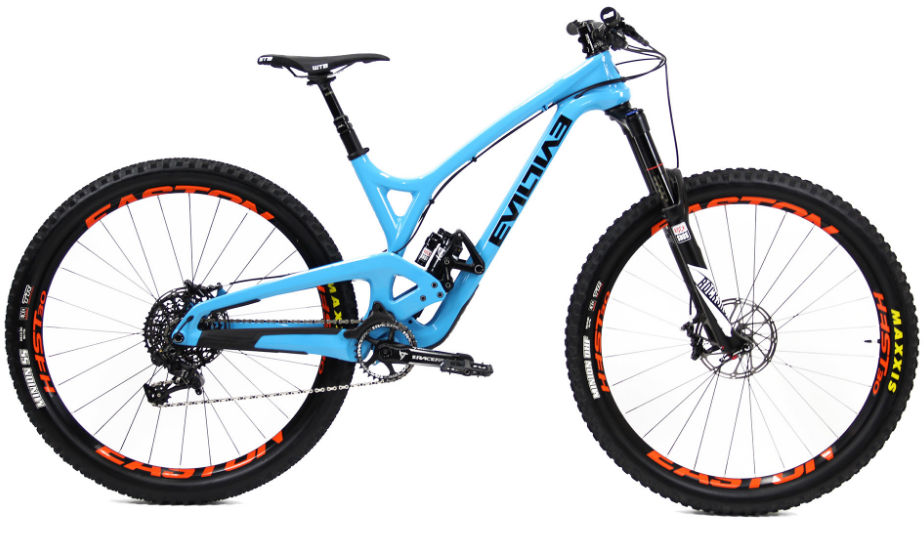

2016 Evil The Wreckoning geometry
Full frame geometry for the 2016 Evil The Wreckoning, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 627 | 415 | 74.8 | 66.1 | 104 | 604 | 734 | 10 | 731 | 430 | 1161 | 51 |
| M | 636 | 432 | 74.8 | 66.1 | 114 | 624 | 745 | 10 | 752 | 430 | 1182 | 51 |
| L | 648 | 452 | 74.8 | 66.1 | 127 | 647 | 752 | 10 | 777 | 430 | 1207 | 51 |
| XL | 659 | 472 | 74.8 | 66.1 | 139 | 671 | 765 | 10 | 802 | 430 | 1232 | 51 |
All measurements in millimetres unless marked (°) for angles.
