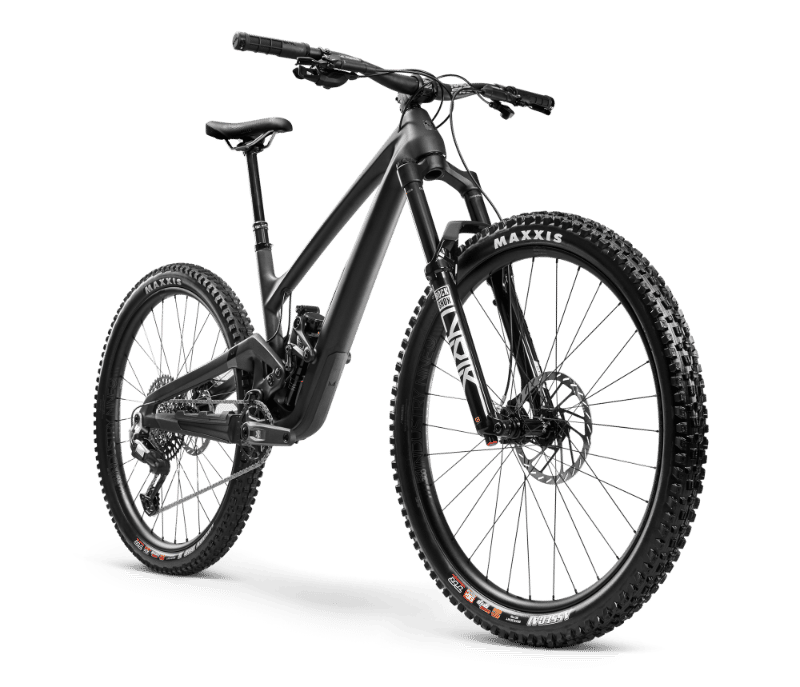

2026 Evil Offering V4 geometry
Full frame geometry for the 2026 Evil Offering V4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 611 | 444 | 75.3 | 64.7 | 95 | 560 | 400 | 684 | 24 | 771 | 435 | 1204 | 44 | 128 |
| M | 620 | 466 | 75.5 | 64.7 | 105 | 583 | 415 | 690 | 24 | 796 | 435 | 1230 | 44 | 128 |
| L | 628 | 488 | 75.5 | 64.7 | 114 | 606 | 435 | 700 | 24 | 822 | 435 | 1256 | 44 | 128 |
| XL | 643 | 507 | 76 | 64.7 | 130 | 623 | 470 | 724 | 24 | 848 | 435 | 1282 | 44 | 128 |
All measurements in millimetres unless marked (°) for angles.
