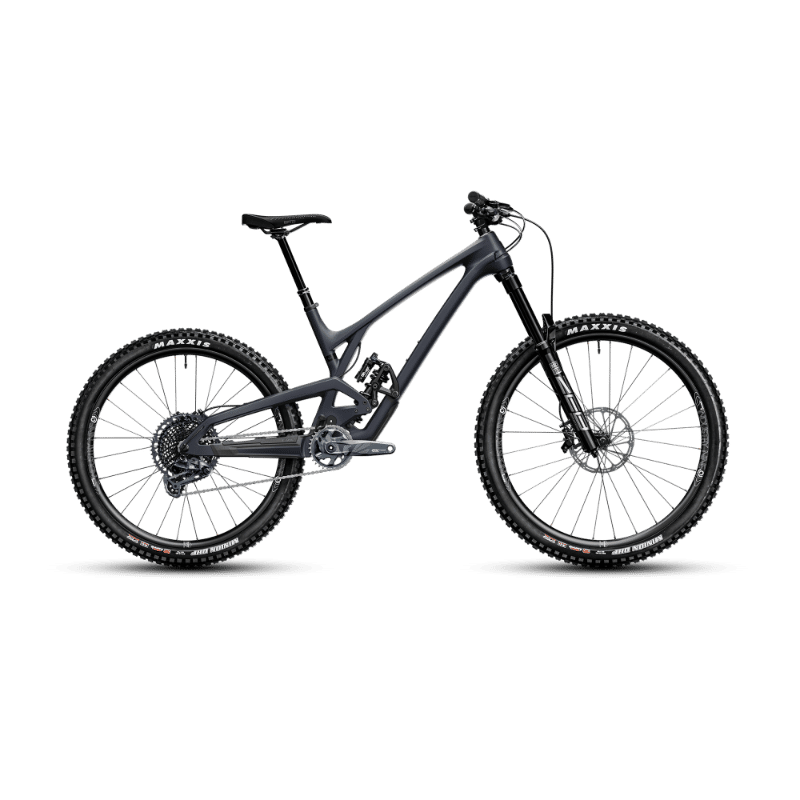

2026 Evil Insurgent LS MX geometry
Full frame geometry for the 2026 Evil Insurgent LS MX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 621 | 443 | 76.9 | 64.2 | 104 | 595 | 390 | 705 | 1 | 785 | 430 | 1215 | 44 | 131 |
| M | 630 | 460 | 76.9 | 64.2 | 114 | 612 | 425 | 716 | 1 | 806 | 430 | 1236 | 44 | 131 |
| L | 642 | 480 | 76.9 | 64.2 | 127 | 633 | 460 | 724 | 1 | 832 | 430 | 1262 | 44 | 131 |
| XL | 652 | 500 | 76.9 | 64.2 | 139 | 654 | 495 | 736 | 1 | 857 | 430 | 1287 | 44 | 131 |
All measurements in millimetres unless marked (°) for angles.
